• Easy, Flexible Operation

    View data on both the large backlit LCD display and from iOS® or Android™ mobile devices using the ExView app via Bluetooth.

  • Standalone Capture and Display

    Simultaneously monitor air velocity and temperature data, record max/avg readings, and freeze the display with ‘data hold’ feature.

  • Portable Collection, Analysis, and Reporting

    Export .CSV data; create and send PDF reports including photos of the measurement location taken with a connected smartphone or tablet camera.

Specifications
General Specifications
Air Velocity (ft/min)
295.2 to 5905 ft/min
Air Velocity (ft/min) Basic Accuracy
±5% full scale
Air Velocity (ft/min) Max Resolution
1 ft/min
Air Velocity (km/h)
5.4 to 108 km/h
Air Velocity (km/h) Basic Accuracy
±5% full scale
Air Velocity (km/h) Max Resolution
0.1 km/h
Air Velocity (knots)
2.9 to 58 knots
Air Velocity (knots) Basic Accuracy
±5% full scale
Air Velocity (knots) Max Resolution
0.1 knots
Air Velocity (m/s)
1.5 to 30 m/s
Air Velocity (m/s) Basic Accuracy
±5% full scale
Air Velocity (m/s) Max Resolution
0.1 m/s
Air Velocity (mph)
3.3 to 67 mph
Air Velocity (mph) Basic Accuracy
±5% full scale
Air Velocity (mph) Max Resolution
0.1 mph
Beaufort Wind Force
0 to 12
Beaufort Wind Force Basic Accuracy
±1
Beaufort Wind Force Max Resolution
1.0
Sampling Rate
0.5 sec
Temperature (Air)
14 to 122°F (-10 to 50°C)
Temperature (Air) Basic Accuracy
±4°F (±2°C)
Temperature (Air) Max Resolution
0.2°F (0.1°C)
Wireless Connectivity
Bluetooth® (via ExView iOS/Android mobile app)
Wireless Transmission Range
up to 90 m line of sight
Additional Details
Certifications
CE, FCC, UKCA
Dimensions
6.9 × 2.1 × 1.1 in (176 × 53 × 28 mm)
Operating Conditions
32 to 104°F (0 to 40°C), ≤80% RH
Power
3 × AAA (1.5V) batteries
Warranty
2 years
Weight
3.2 oz (90 g)
Related Documents

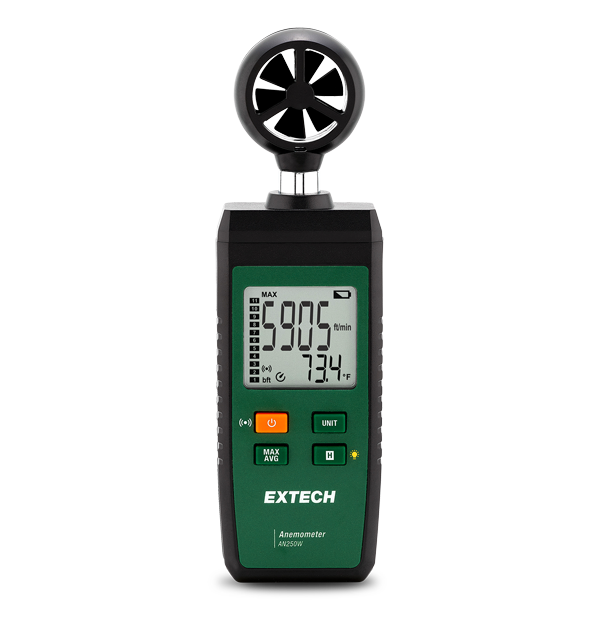

Extech AN250W

$109.99
