Thermal Clip-On System

FLIR Apollo

Model: Apollo 640 (30Hz) 50mm
Go to Support Page

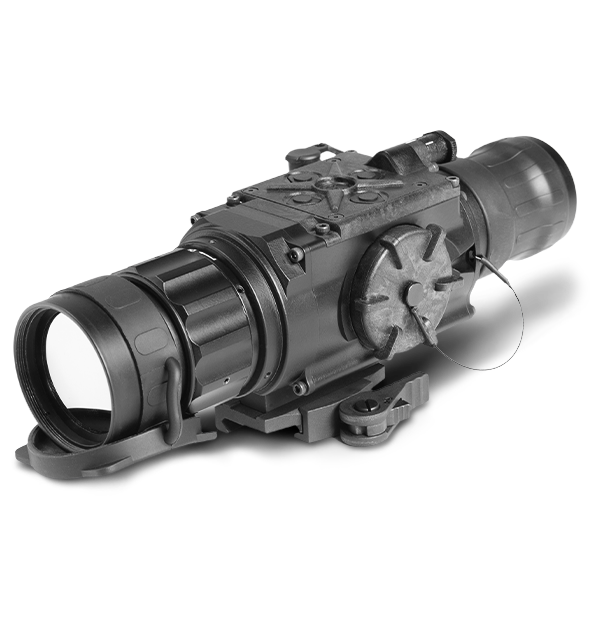

product image

The FLIR Apollo introduces thermal imaging to any standard daytime optic—no rezeroing needed. Fastened in front of a magnified sight via Picatinny quick-release mount, the Apollo brings state-of-the-art thermal technology to an existing set-up in seconds. Detect targets in complete darkness or through atmospheric obscurants without the need to remove daytime optics.

Fast, On-Demand Thermal Imaging

  • No Rezeroing Required

    Clip-on thermal sight relies on the day scope reticle, eliminating the need to rezero.

  • Familiar Precision

    Front-mounted thermal sight allows consistent shooting position and eye relief with an existing day scope.

  • Advanced Imaging

    FLIR Tau 2 thermal core, advanced image processing, and HD AMOLED SVGA display create a bright, sharp picture.

Specifications
System Overview
Dimensions (L x W x H)
208 × 74 × 82 mm (8.2 × 2.9 × 3.2 in)
Focus Range
5m to inf.
Pixel Size
17 µm
Warranty
2 years standard, 3 years with product registration
Height of the Scope Axis above Rail
40 mm (1.57 in)
Magnification
Unity (1×)
Digital Compass
-
Digital Inclinometer
-
Eye Relief [mm]
-
Optional Accessories
Scope Mounting System 3 #42, Scope Mounting System 2 #41, Scope Mounting System 1 #40, Mil-Standard Hard Shipping/Storage Case #101, Scope Mounting System 4 #43, Scope Mounting System 6 #44, IRIS Wireless Head Mounted Display, HD DVR Digital Video Recorder, Extended Battery Pack, Extended Rail Adapter #85
Recoil Resistance
700 g
Warranty on Detector
10 Years
Weight [w_o Batteries]
0.7 kg (1.5 lbs)
Windage Adjustment Range [NTSC_ PAL]
-
Windage_Elevation Boresight Increment [NTSC]
-
Windage_Elevation Boresight Increment [PAL]
-
Accessories
Included Accessories
Soft carrying Case, Battery Cassette, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Two Lithium Battery CR123A, Video Cable, Light-Suppressor 1, Light Suppressor for Day Scope, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Lens Tissue
Connections & Communications
Remote Control
Wireless
Video Recording
Optional Digital Video Recorder with SD card slot
Analog Input and Output Format [resolution]
NTSC (640 × 480 pixels) / PAL (768 × 574 pixels)
Environmental & Approvals
Operating Temperature
-40°C to +50°C (-40°F to +122°F)
Storage Temperature
-50°C to +70°C (-58°F to +158°F)
Imaging & Optical
Active Contrast Enhancement
Yes
Digital Zoom
-
Diopter Adjustment
-
Display Type
AMOLED SVGA 060
Smart Scene Optimization
Yes
Thermal image palettes
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
Boresight Retention
Permanent to within 2 MOA or better
Diopter Adjustment Range
-
Reticle Type
No Reticle
Automatic Gain Control [AGC]
Yes
Boresight Accuracy
Factory aligned to 1 MOA or better
Boresight Adjustment [Pix_MOA]
-
Boresight Repeatability
Within 2 MOA
Digital Angle Cosine Indicator
-
Display Brightness
Discretely Adjustable to 8 Levels
Elevation Adjustment Range [NTSC _ PAL]
-
Exit Pupil Diameter [mm]
25 mm
Field of View [angle]
15°× 12°
Focus Method
Manual
Information_Based Histogram Equalization [IBHEQ] _ SKY_SEA
-
Objective F_number
1:1
Objective Focal Length
50 mm
Objective Lens Type
Germanium
Pixel Array Format
640×512
Pixel Display Format
800×600
Reticle Color
-
Second Generation Digital Detail Enhancement [DDE] _ Sharpness
Yes
Silent Shutterless NUC [SSN]
Yes
Type of Focal Plane Array
FLIR Tau 2
User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC]
Yes
Power
Battery
Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
Battery life
Up to 4 hr (optional up to 12 hrs)
Battery status indicator
Yes
Start Up Time
3 sec
External Power Supply
6 VDC/ 600mA
Presentation
Refresh Rate
30 Hz
