100 mm Thermal Clip-On System

FLIR Apollo Pro LR

Model: Apollo Pro LR 640 100mm (30 Hz)
Go to Support Page

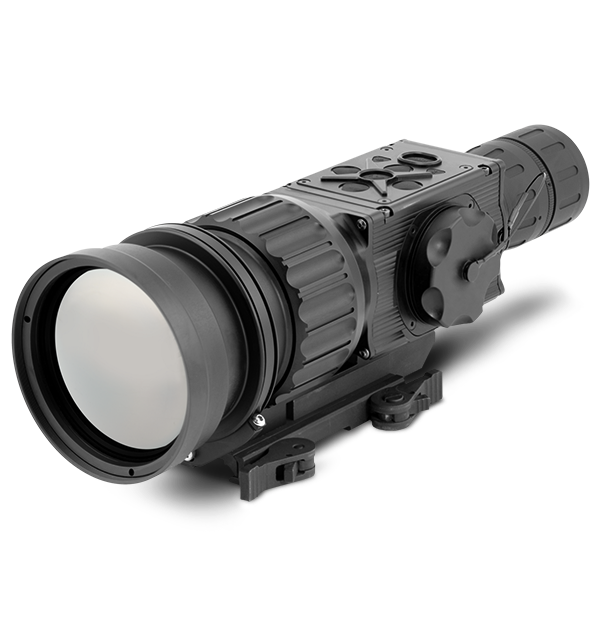

product image

Designed for long-range target detection and engagement, the FLIR Apollo Pro LR adds high-performance thermal imaging to any standard day scope. Using an existing ballistic reticle for shot placement, the Apollo Pro LR provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Accompanying mobile app and remote control simplify quick configuration changes and can provide valuable range estimation, target orientation, and weather data.

Long-Range Precision Meets High-Performance Thermal

  • Instant Accuracy

    Quick-release Picatinny mount installs in seconds while relying on an existing ballistic reticle eliminates the need for rezeroing.

  • Intelligent Shot Placement

    Internal compass and inclinometer work alongside mobile app to provide detailed map orientation, target direction and range, and weather conditions.

  • Outstanding Detection

    100 mm optical lens and 640 resolution FLIR Tau 2 thermal core generate sharp thermal imaging over distances while user-configurable image enhancements help detect targets quickly.

Specifications
System Overview
Dimensions (L x W x H)
287 × 90 × 100 mm (11.3 × 3.5 × 3.9 in)
Focus Range
10m to inf.
Pixel Size
17 µm
Warranty
2 years standard, 3 years with product registration
Height of the Scope Axis above Rail
46 mm (1.81 in)
Magnification
Unity (1×)
Digital Compass
Yes
Digital Inclinometer
Yes
Eye Relief [mm]
-
Optional Accessories
Mil-Standard Hard Shipping/Storage Case #102, Extended Rail Adapter #85, Extended Battery Pack, AMRF2200 - Advanced Modular Range Finder, HD DVR Digital Video Recorder, IRIS Wireless Head Mounted Display
Recoil Resistance
0.50 BMG weapon shock
Warranty on Detector
10 Years
Weight [w_o Batteries]
1.3 kg (2.9 lbs)
Windage Adjustment Range [NTSC_ PAL]
±48MOA / ±40MOA
Windage_Elevation Boresight Increment [NTSC]
0.6 mOA, 0.17 mils, 0.62 in/100 yd, 1.7 cm/100 m
Windage_Elevation Boresight Increment [PAL]
0.5 mOA, 0.15 mils, 0.5 in/100 yd, 1.5 cm/100 m
Accessories
Included Accessories
Battery Set, AWReC (Advanced Wireless Remote Control 5-buttons), Soft carrying Case, Light-Suppressor 1, Light-Suppressor 2, Video Cable, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Instruction Manual with Warranty Card, Light-Suppressor 3, Packing Box, Key (used to remove the battery cap insert), Battery Box Extender Ring (for AA batteries), Battery Cartridge (for AA batteries), Light Suppressor for Day Scope, Lens Tissue
Connections & Communications
Remote Control
Wireless 5-button
Video Recording
Optional Digital Video Recorder with SD card slot
Analog Input and Output Format [resolution]
NTSC (640 × 480 pixels) / PAL (768 × 574 pixels)
Environmental & Approvals
Operating Temperature
-51°C to +57°C (-59°F to +134°F)
Storage Temperature
-57°C to +85°C (-70°F to +185°F)
Imaging & Optical
Active Contrast Enhancement
Yes
Digital Zoom
1×, 2×, 4×, and 8×
Diopter Adjustment
-
Display Type
AMOLED SVGA 060
Resolution
0.17 mRad (35 SOA)
Smart Scene Optimization
Yes
Thermal image palettes
White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain
Boresight Retention
-
Diopter Adjustment Range
-
Reticle Type
6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle
Automatic Gain Control [AGC]
Yes
Boresight Accuracy
-
Boresight Adjustment [Pix_MOA]
-
Boresight Repeatability
-
Digital Angle Cosine Indicator
Yes
Display Brightness
Discretely Adjustable to 8 Levels
Elevation Adjustment Range [NTSC _ PAL]
±36MOA / ±30MOA
Exit Pupil Diameter [mm]
40 mm
Field of View [angle]
6.2° × 5°
Focus Method
Manual
Information_Based Histogram Equalization [IBHEQ] _ SKY_SEA
Yes
Objective F_number
1:1.4
Objective Focal Length
100 mm
Objective Lens Type
Germanium
Pixel Array Format
640 × 512
Pixel Display Format
800×600
Reticle Color
Black, White, Red, Cyan
Second Generation Digital Detail Enhancement [DDE] _ Sharpness
Yes
Silent Shutterless NUC [SSN]
Yes
Type of Focal Plane Array
FLIR Tau 2
User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC]
Yes
Power
Battery
Four CR123A 3V Lithium batteries or four AA 1.5V
Battery life
Up to 7 hrs (optional up to 14 hrs)
Battery status indicator
Yes
Start Up Time
3 sec
External Power Supply
6 VDC/ 600mA
Presentation
Refresh Rate
30 Hz
