4K UHD Bullet Camera

Ariel 4K UHD Bullet

Go to Product Support

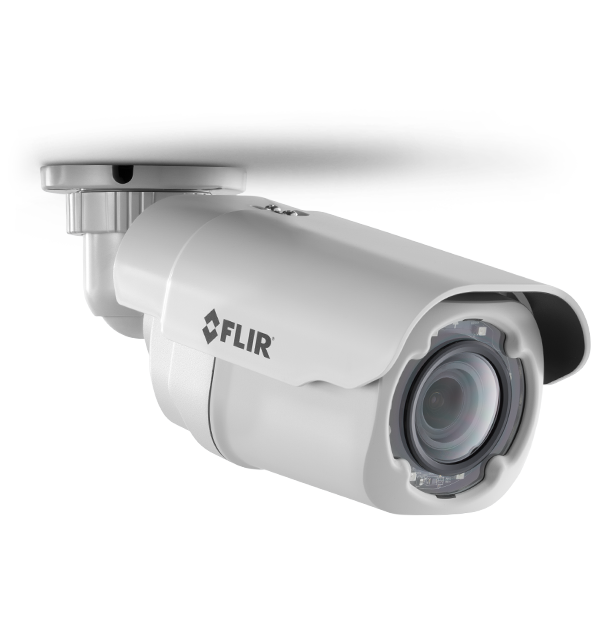

product image

The Ariel 4K UHD bullet is ready for the diverse motion and lighting conditions found in critical infrastructure and commercial locations. The camera includes Shutter Wide Dynamic Range, IR Illumination and H.264/H.265 compression. The Ariel 4K UHD Bullet reduces the total cost of ownership through network and storage infrastructure savings. When controlled using FLIR’s United VMS, the camera also utilizes FLIR’s custom adaptive streaming technology, enhancing the overall viewing experience.

Contact Sales
  • Latest sensor technology

    Features include 4K UHD resolution, Shutter Wide Dynamic Range, and H.264/H.265 compression.

  • True Day/Night coverage

    Camera sensitivity equals 0.07 Lux (color), 0.01 Lux (BW), and 0 Lux with IR illumination.

  • Built-in Analytics

    The camera offers tamper detection and multi-zone video motion detection.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Specifications
General
Pan/Tilt
360° / ±80°
Overview
AES
1/1.75 to 1/10,000 (auto)
Alarm Output
1 Relay Contact
Day/Night Mode
Yes, support for Enhanced Low Light Performance
Dimensions
215 x 86 x 80 mm (8.48 x 3.39 x 3.15 in.)
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Privacy Zones
Yes
Scanning Mode
Progressive
Security
User account with password protection and IP filter
Shutter WDR
On / Off
Signal to Noise Ratio
More than 50dB when AGC off
Tamper Detection
Yes
View Port
IK7 vandal resistant polycarbonate
View Port F-Stop
F0.0 - clear
Warranty
According to FLIR RMA Policy and Process Notice document
Compliance & Certifications
International
CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM
MTBF [hrs]
354,139 at 50°C
USA
UL/cUL 60950-1, FCC47 CFR Part 15 subpart B / ICES-003
Connections & Communications
Ethernet
10/100, IEEE 802.3, auto sensing 1 x RJ45
Network Protocol
TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP
Remote Configuration
via web browser or supported video management software
Supported Web Browser
Internet Explorer 10+, Firefox 50+, Chrome 55+
Environmental
Humidity
90% (non-condensing)
Operating Temperature
-40°C to 50°C (-40°F to 122°F)
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Imaging & Optical
Backlight Compensation
On / Off
DSS
1/7.5(6.25)~1/60(50) NTSC(PAL)
Image Sensor
1/2.5" BSI CMOS
Lens Type
Varifocal 3.4-9mm, 42°-104° HFOV, F1.5, D/N, motorized auto-focus / auto-iris, P-Iris lens
Mechanical IR Cut Filter
Yes
Noise Reduction
3D
Sensor Resolution
3840 x 2160
Measurement & Analysis
Automatic Gain Control
Auto
Physical
Enclosure
Indoor/Outdoor: IK7 rated vandal IP67
Unit Weight
0.63kg (1.39 lbs.)
Power
Input Voltage
802.3af PoE
Power Connection
RJ45
Power Consumption
8W / 12W with heater and IR
System Integration
Alarm In
1 dry alarm contact
Angle of Illumination
Full 60°
Bi-directional Audio
1 Audio Line Input, G.711 a/µ-law, AAC support + 1 Audio Line Output
IR Distance
up to 30m (98 ft.)
LED Type
high efficiency SMD
Peak Emission Wavelength [nm]
850.0
Video & Recording
Maximum Performance
H.264/H.265 30/25 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL)
Rate Control
CBR, CVBR, VBR, MJPEG
Resolution Range
Scalable from D1 to 4K
SD Card Recording1
microSDXC up to 128GB (Class 10)
Video Bandwidth
Configurable between 64Kbps and 20Mbps
Video Compression
Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG
Video Motion Detection
Yes
Visible Camera
Sensitivity
0.07 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
