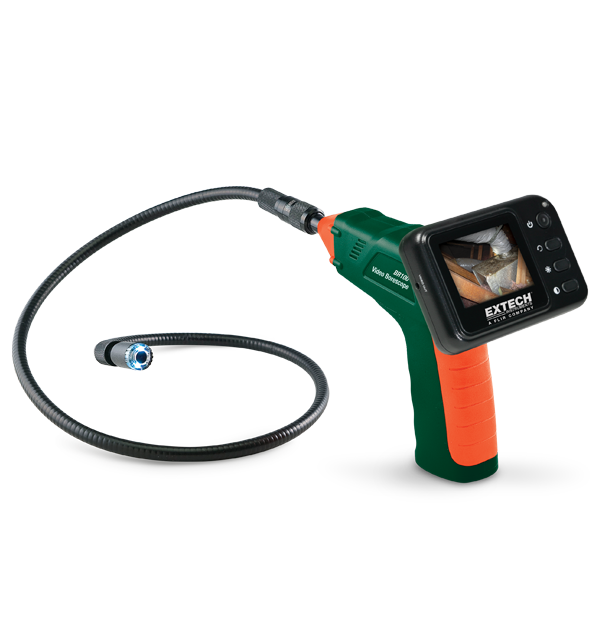

Extech BR100
Video Borescope Inspection Camera
The Extech BR100 is a Video Borescope Inspection Camera with a 17 mm (0.7 in) camera diameter and 61 mm (2.4 in) color TFT LCD Monitor. It can be ideal for applications such as home, HVAC, automotive, industrial, aerospace, and security inspections. Features a glare free, close-up field of view and a display which detaches for easy storage. Complete with 4 AA batteries, extension tools (mirror, hook, magnet), video output jack, and hard case.
Specifications
| General | |
|---|---|
| Field of view [FOV] | 50° |
| Focus Distance | 5.9" to 9.8" (15 to 25cm) |
| Minimum Bend Radius | 2.36" (60mm) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Handle: 7.3 × 5.7 × 1.6" (186 × 145 × 41mm); Monitor: 3.9 × 2.7 × 1.8" (100 × 70 × 30mm) |
| Display | 2.4" TFT (480 x 234 pixels) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | Handle: 18.7oz (530g); Monitor: 4.9oz (140g) |
Resources & Support
Certification
Extech BR100 Declaration of Conformity
User Manual
Extech BR100 User Manual
Datasheet
Extech BR100 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
