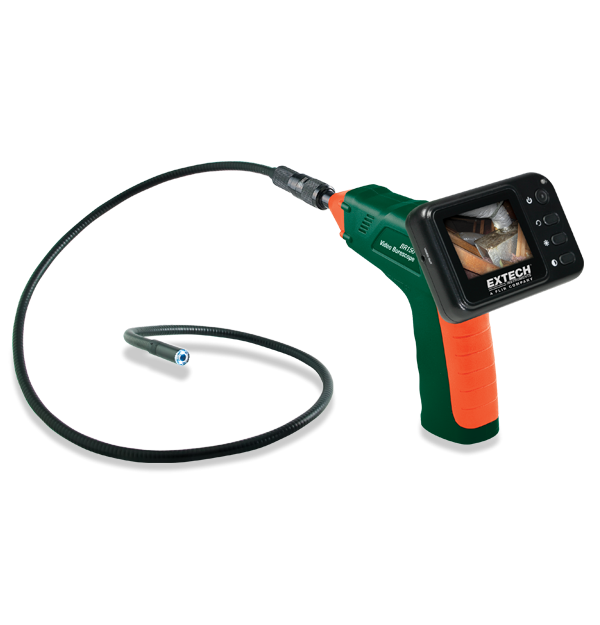

Extech BR150
Video Borescope Inspection Camera
The BR150 Video Borescope features a 61 mm (2.4 in) color TFT LCD monitor and a mini waterproof (IP67) 9 mm camera head with a dual light system for high resolution, glare free, and close up viewing. It features a gooseneck cable which retains its configured shape as well as a detachable display for easy storage. Comes with 4 AA batteries, extension tools (mirror, hook, and magnet), video output jack, and hard case.
Specifications
| General | |
|---|---|
| Diameter | 0.35" (9mm) |
| Field of view [FOV] | 45° |
| Focus Distance | 5.9" to 9.8" (15 to 25cm) |
| Length | 39" (1m) |
| Minimum Bend Radius | 2.36" (60mm) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Handle: 7.3 × 5.7 × 1.6" (186 × 145 × 41mm); Monitor: 3.9 × 2.8 × 1.2" (100 × 70 × 30mm) |
| Display | 2.4" TFT (480 x 234 pixels) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | Handle: 18.7oz (530g); Monitor: 4.9oz (140g) |
Resources & Support
Certification
Extech BR150 Declaration of Conformity
User Manual
Extech BR150 User Manual
Datasheet
Extech BR150 Datasheet
