True RMS Power Clamp

FLIR CM82

Go to Support Page
product image

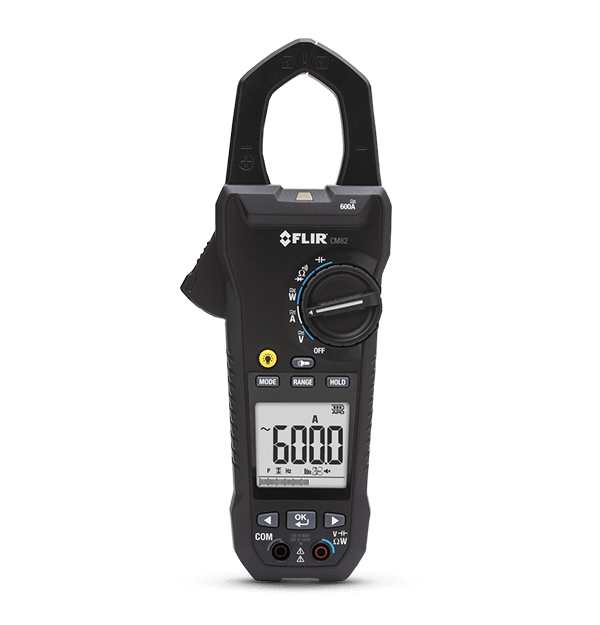

The FLIR CM82 is an industrial-grade power clamp meter engineered with advanced power analysis, harmonics measurements, and variable frequency drive (VFD) filtering functions to meet the needs of electrical troubleshooters. The meter features a backlit display screen with large, easy-to-read digits, an analog bargraph, and powerful work lights bright enough to serve as a primary work light. Also tested to withstand a 2m drop, the CM82 has dependable functionality that’s vital to professionals.

$299.99
Buy Now

Industrial-Grade, Advanced Power Analysis to Meet Your Needs

  • Superior Accuracy

    Provides VFD Mode while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis.

  • Reliable Performance

    Features Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment.

  • Convenient for Troubleshooting

    Features powerful LED lights that can serve as a primary work light and assist with clamping.

Specifications
Overview
Jaw Opening
37 mm (1.45", 1000MCM)
Warranty
Limited Lifetime
Connections & Communications
Bluetooth range max
N/A
Measurement & Analysis
AC/DC Voltage
Range 1000 V / Basic Accuracy +/- 1% / 0.7%
Active Power
Range 10 kW to 60 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
Capacitance
Range 3.999 mF Max / Basic Accuracy +/- 1.9%
Category Rating
CAT IV-600V, CAT III-1000V
Continuity Threshold
Range 30 Ω / Basic Accuracy +/- 1%
Diode Test
Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
Frequency
Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
Harmonics
Range 1st-25th Order / Basic Accuracy +/- 5%
Resistance
Range 99.99 kΩ Max / Basic Accuracy +/- 1%
Total Harmonic Distortion
Range 0.0 to 99.9% / Basic Accuracy +/- 3%
Power
AC VFD Voltage
Range 1000 V / Basic Accuracy +/- 1%
AC/DC Current
Range 600 A / Basic Accuracy +/- 2%
Battery type
6 x AAA
Inrush Current
Range 600 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
Reviews

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
