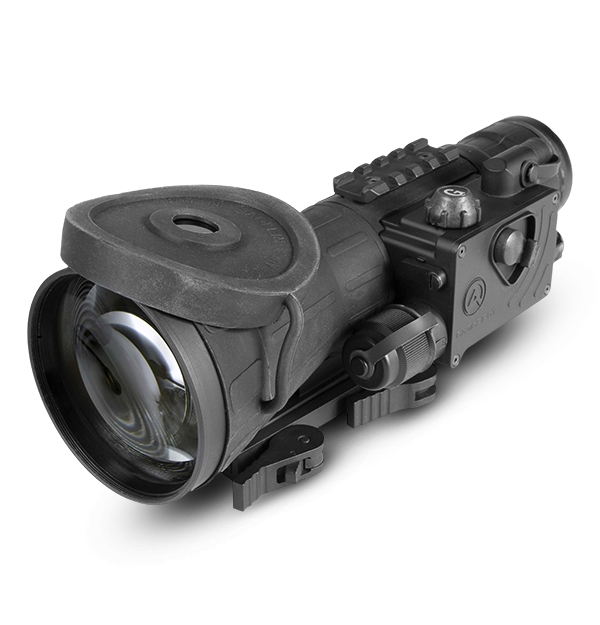

108 mm Night Vision Clip-On System

FLIR CO-LR-LRF

Model: CO-LR-LRF GEN 3A MG
Go to Support Page
product image

Designed for long-range target detection and engagement, the FLIR CO-LR-LRF adds high-performance night vision to any standard day scope. Using an existing ballistic reticle for shot placement, the CO-LR-LRF provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Variable gain control and included XLR IR illuminator further enhance imaging in challenging light conditions.

Unwavering Precision After Dark

  • Long-Range Target Engagement

    108 mm lens and Gen 2+/Gen 3 intensifier tubes capture excellent night vision downrange.

  • Familiar Precision

    Front-mounting allows consistent ballistic reticle use, eliminating the need to rezero, and maintains familiar shooting position.

  • Fast, Simple Mounting

    Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.

Specifications
System Overview
Auto Power Off
Yes
Dimensions (L x W x H)
240 х 97 х 87 mm (9.4 х 3.8 х 3.4 in)
Focus Range
25 m to Infinity
Product Weight
1.1 kg (2.4 lbs)
Tripod Mount
-
Warranty
2 Years
Height of the Scope Axis above Rail
40 mm
Lens System
F/1.54; 108 mm
Magnification
1× (recommended to use with up to 12x day time optics)
Eye Relief [mm]
-
IIT Generation
Gen 3 Alpha (High Performance) MG
Optional Accessories
Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder
Photocathode Type
GaAs
Windage_Elevation Adjustment
-
Accessories
Included Accessories
Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-DeviceBattery, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue
Connections & Communications
Remote Control
Wireless
Environmental & Approvals
Operating Temperature
-40°C to +50°С (-40°F to +122°F)
Storage Temperature
-50°C to +70°С (-58°F to +158°F)
Imaging & Optical
Diopter Adjustment
-
Field of View
Resolution
64-72 lp/mm
Reticle Type
-
Automatic Brightness Control
Yes
Bright Light Cut_off
Yes
Exit Pupil Diameter [mm]
50 mm
Infrared Illuminator
Detachable Long Range IR
IR Indicator
No
Manual Gain Control
Yes
Reticle Color
-
Power
Battery life
Up to 45 hours
Power Supply
CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)
Low Battery Indicator
Yes (in FOV)
