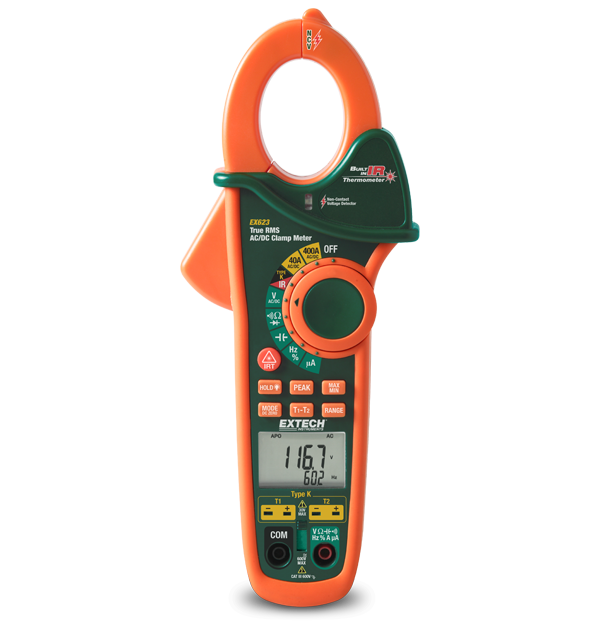

Extech EX623
400A Dual Input AC/DC Clamp Meter + NCV + IR Thermometer
This TRMS AC/DC Clamp Meter has dual thermocouple inputs for T1, T2, T1-T2 Differential Temperature measurement plus a built-in Infrared Thermometer with laser pointer for locating hot spots and NCV Detector. Additional features include: DC micro-amp function for flame rod measurements, Diode open circuit voltage of 2.8 Volt, Data Hold plus fast Peak Hold for capturing current surges at motor startup, and capacitance measurement to 40mF. Comes complete with test leads, 9 Volt battery, two Type K bead wire Temperature probes and carrying case.
Specifications
| General | |
|---|---|
| AC Current | 400.0A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 10mA |
| AC Voltage | 600V |
| AC Voltage Max Resolution | 0.1mV |
| Capacitance | 40mF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Current | 400.0A |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 10mA |
| DC Microcurrent | 4000µA |
| DC Microcurrent Max Resolution | 0.01µA |
| DC Voltage | 600V |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | 0.5 to 99.0% |
| Frequency | 40MHz |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 1.25" (32mm), conductors up to 500MCM |
| Resistance | 40.000MΩ |
| Resistance Max Resolution | 0.01Ω |
| Temperature [IR] Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature [Type K] Max Resolution | -58 to 1832°F (-50 to 1000°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 9 × 3.1 × 1.9" (229 × 80 × 49mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 10.7oz (303g) |
