Pin Moisture Meter with Bluetooth®

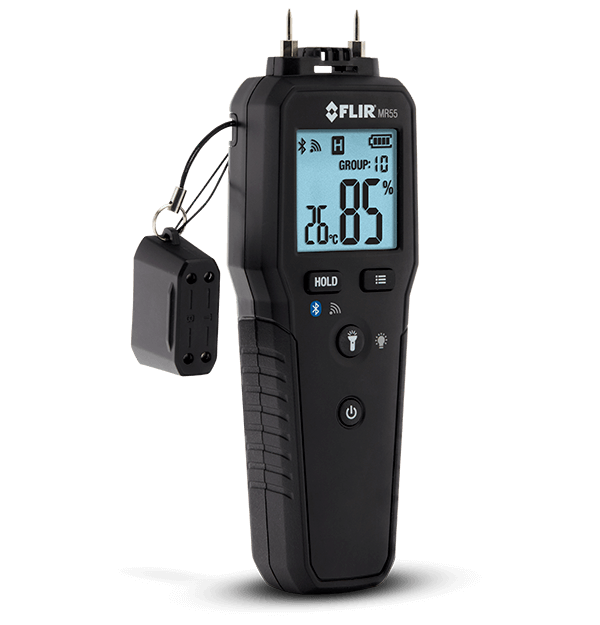

FLIR MR55

Go to Product Support
product image

The FLIR MR55 is a pin-based meter with wireless connectivity, which offers the convenience to view readings from a mobile device via the FLIR Tools® Mobile app. Thanks to a built-in library of 11 material groups, users can tune the meter to the appropriate test material to improve measurement accuracy. This library is easy to access on the FLIR.com website by scanning a QR code on the back of the meter with a mobile device.

$129.99
Buy Now

An accurate and reliable meter with wireless connectivity

  • Take accurate measurements

    Test from 11 material groups with pin probes. Measurements automatically compensate for ambient temperature.

  • Optimize your workflow

    Use Bluetooth® to view readings from a mobile device.

  • Inspect anywhere with ease

    Features replaceable electrode pins, standard AA batteries, a backlit display, and a bright worklight to help make your job seamless.

Specifications
Overview
Auto Power Off (APO)
After 20 minutes
Dimensions
188 × 58 × 33 mm (7.4 × 2.3 × 1.3 in)
Electrode Pins
Integrated, replaceable, 10 mm (0.4 in)
Housing material
Impact-resistant plastic
Warranty
Limited 3 years
Weight
160 g (5.6 oz) battery excluded
Compliance & Certifications
Certifications
CE, RCM, FCC/IC
Connections & Communications
Connectivity
Bluetooth BLE; Communications Protocol: METERLiNK®
Environmental
Ambient temperature range
0°C to 50°C (32°F to 122°F) / Accuracy: ±1°C (2°F)
Drop test
2 m (6.6 ft)
IP Rating
IP40
Relative Humidity
Range 0-10% / Accuracy ±4%; Range 10-85% / Accuracy ±2%
Measurement & Analysis
Measurement Principle
Electrical resistance using pins
Pin Moisture
Wood Range: 7% to 29% (±2% MC accuracy); 30% to 99% (Reference Only) / Building Material Range: 1% to 99% Group 10, 1 to 35% Group 11 (Reference Only)
Pin Moisture Groups
Wood Type: Groups 1–9; Building Materials: Groups 10 and 11
Work light
White LED
Meter Data
Display
Backlit, multifunction LCD
Power
Battery Life
Typical 70 hours without worklight
Battery status indicator
4-bar battery icon (100% to empty)
Battery Type
(2) x 1.5 V AA
Media Gallery
Getting Connected to the FLIR MR55
Thermal Imaging for Moisture & Restoration | Meet the FLIR MR Series
Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
