Elara™ DX-Series + Radar Detection with FLIR Nexus Logic

FLIR NEXUS® Bundle

Model: DX-606z 15-75 mm & R-290 FCC-Compliant Bundle Go to Product Support
product image

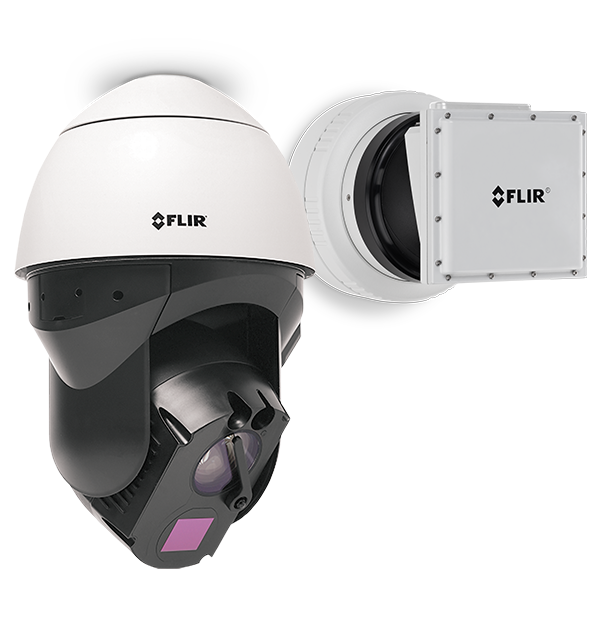

The FLIR Nexus Bundle combines a FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera with an Elara R-290 ground radar for complete situational awareness in the most punishing environments. The full coverage of radar, thermal imaging, and visible light imaging gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The Elara DX-Series' exceptional detection and identification capabilities help integrators provide solutions for challenging imaging problems while the Elara R-290 radar offers up to 400-meter range for vehicle tracking and 200-meter range for human tracking with the ability to guide PTZ cameras for visual verification to maximize security coverage.

  • Multispectral surveillance in any conditions

    Complete awareness in any lighting or weather conditions, with dual thermal/visible camera coverage as well as 90° field-of-view ground radar.

  • Real-time communication across FLIR edge devices

    Continuously track and precisely locate up to 32 targets simultaneously, with seamless device-to-device communication—including alarm triggering—through FLIR Nexus.

  • Integrates with existing systems quickly and affordably

    Integrates radar target tracking information as well as visible and thermal data with FLIR United VMS and other, third party video management systems for precise accuracy and full control.

Specifications
General
Detector Type
Long-Life, Uncooled VOx Microbolometer
Focus Range
Motorized continuous zoom; autofocus with minimum focus range of 7 m (wide) to 18 m
I/Os
RJ45 Ethernet, 10-pin Terminal Block
Input Voltage
Radar: 12V DC, 24V AC, and PoE+
Camera: 24 VAC (±10%), Universal PoE injector
Power Consumption
Radar: 7.5 W
Camera: 24 VAC max: 61 W, PoE max: 43 W
Protocols
AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI
RF Transmit Power
14 dBm (0.025 W)
Visible Sensor Type
Full HD 4K, 1/1.8-type CMOS
Weight
Radar: 2.4 kg (5.29 lbs)
Camera: 9.1 kg (20.06 lbs
Zoom
Visible: Optical Zoom–31, Continuous e-zoom to 8x
Thermal: Continuous e-zoom to 4x
Accessories
Optional Accessories
Pole Mount, Corner Mount, 180° Dual Wall Mount, PoE Power Supply
Communication & Data Storage
Connector Types
RJ45 Ethernet, power terminal block
Compliance & Certifications
Compliance and Certifications
FCC Part 15 (Subpart B, class A)
CE Marked
RoHS
IP66
WEEE
NEMA 4X
IEC 62368
ONVIF Profile S
Environmental
Humidity
0-95% relative
IP Rating
IP66
Operating Temperature
Radar: -40°C to 70°C (-40°F to 158°F)
Camera: -40°C to 60°C (-40°F to 140°F)
Shock
IEC 60068-2-27
Storage Temperature
-55°C to 85°C
Vibe
IEC 60068-2-64
Environmental & Certifications
Non-Operating Temperature
Radar: -50°C to 85°C (-58°F to 185°F)
Camera: -55°C to 85°C (-50°F to 185°F)
General
Dimensions (H x W x D)
Radar: 161 × 161 × 195 mm (6.34 × 6.34 × 7.68 in)
Camera: Diameter: 275 mm (10.83 in), Height: 368 mm (14.49 in)
Imaging & Optical
F_number
Visible: f/1.55 (wide) to f/4.8 (tele)
Thermal: f/1.2
Measurement & Analysis
Angular Accuracy
0.6°
Coverage Area
7.6 acres / 30,000 m² (Human Detection)
Frequency Range
24.000–24.250 GHz ISM Band
Human Detection Range
200 m (656 ft)
Min Target Detection Speed
0.2 m/s (0.65 f/s)
Programmable Presets
256
Radar Targets
Max 32
Range Resolution
1.5 m (4.92 ft)
Target Information
GPS coordinates, velocity, RCS, range, azimuth angle/direction, heading, course/track, target ID
Vehicle Detection Range
400 m (1312 ft)
Other
Audio I_O
Bi-directional audio - connection - terminal block
IR Illumination
Up to 200 m NIR illumination; Distance: up to 200 m (656 ft) | 6° / 30 / 90° Peak emission wavelength: 850 nm
Range Accuracy
<1 m (3.28 ft)
Pan-Tilt
Pan Range
±43°
Tilt Range
30°/-60°
PTZ
Pan Speed
Continuous 360°
0.1° to 90° /sec
Tilt Speed
-10° to 190°
0.1° to 60°/sec
Sensor & Optical
Field of View [H x V]
Radar: 90° × 20°
Camera: 30° × 23° to 6° × 3°
Refresh Rate
10 Hz
System Integration
Digital I_O
Input: 4 Sets / 5 V 10 kΩ pull up
Output: 2 Set / Relay output, max. 130 mA 24 VDC/AC
Ethernet
10/100/1000 Mbps
Network APIs
FLIR SDK, FLIR CGI, ONVIF Profile S
Streaming Resolution
Thermal: QVGA to VGA
Visible: VGA to 4k
Supported Protocols
Radar: AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI
Camera: IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
Image Uniformity Optimization
Automatic Flat Field Correction (FFC) – thermal and temporal triggers
Optical Characteristics
FOV: 30° × 23° to 6° × 3°
Focal Length: 15 mm to 75 mm
Pixel Pitch
12 µm
Thermal AGC Region of Interest [ROI]
Default, Presets and User Definable to ensure optimal image quality on subjects of interest
Thermal Frame Rate
NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz
Thermal Image Settings
Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
Video & Recording
Video Compression
Thermal: One channel of H.264 & M-JPEG
Visible: Two independent channels of H.264 & M-JPEG
Video Image Uniformity Optimization
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
Video Thermal AGC Region of Interest [ROI]
Default, Presets and User definable to insure optimal image quality on subjects of interest
Visible Camera
Array format
640 × 480
Focal Length
Visible: 6.5 mm–202 mm
Thermal: 15 mm–75 mm
Lens Field of View
HFOV: 61.8° - 2.15°
VFOV: 36.65° - 1.2°
Sensitivity
Visible camera: Color—0.25 Lux (@ (f1.6 AGC On, 30FPS)
B/W—0.10 Lux (@ (f1.6 AGC On, 30FPS)
Thermal camera: <50 mK@ 25°C
Spectral Range
7.5 μm to 13.5 μm
Related Content
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
