Visible and Thermal Pan/Tilt

FLIR PT-Series

Model: FLIR PT-348, 320×240, 48° FOV, NTSC
Go to Support Page

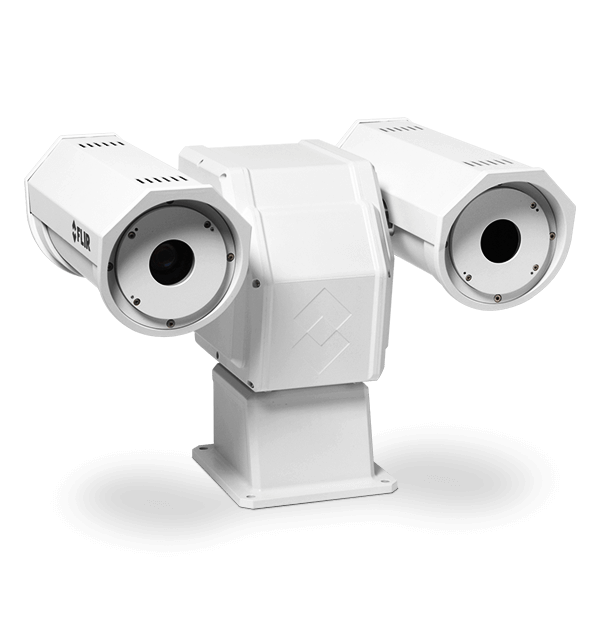

product image

FLIR’s PT-Series combines thermal and visible-light imagers in a single system. The precision pan/tilt mechanism enables accurate control, while also providing fully programmable scan patterns, radar slew to-cue, and slew-to-alarm functions. Designed for high performance, easy installation, and long-term reliability, PT-Series cameras offer either 320 x 240 or 640 × 480 thermal resolution with full WDR.

High-performance, multi-sensor pan/tilt camera

  • Dual Thermal and Visible Outputs

    Simultaneous IP and analog video outputs - along with IP and serial control interfaces - enable easy integration into IP or analog networks.

  • Long range detection

    The FLIR PT-Series improves long range threat detection and alarm assessment, revealing small details from great distances.

  • Easy upgrades or repairs

    Exchangeable camera cassettes allow for quick upgrade or repair of sensors and optics.

Why thermal is the right choice to protect perimeters

Why thermal is the right choice to protect perimeters

FLIR’s advanced thermal security cameras provide the most complete perimeter intrusion protection for locations large and small. Because thermal cameras detect heat, they can reveal intruders in all lighting conditions, including complete darkness, rain, light fog, and smoke. As a result, FLIR thermal security cameras offer affordable, high-performance 24/7 intrusion detection for enterprise, commercial and residential applications. FLIR cameras are also certified by major 3rd party integrators.

Specifications
Overview
Detector Type
Long-Life, Uncooled VOx Microbolometer
Effective Resolution
76,800
Focal Length
9 mm
Focus Range
Athermalized, Focus-Free
Pixel Pitch
25 µm
Spectral Range
7.5 µm to 13.5 µm
Thermal Frame Rate
NTSC: 30 Hz or 7.5 Hz PAL: 25 Hz or 8.33 Hz
Zoom
2× & 4× E-zoom
Connections & Communications
Composite Video NTSC or PAL
Yes: Hybrid IP & Analog
Ethernet
Yes
External Analytics Compatible
Yes
Network APIs
Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S
Serial Control Interfaces
RS-232/-422; Pelco D, Bosch
Supported Protocols
IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP
Environmental
De-Icing/Anti-Icing
MIL-STD-810F, Method 521.1; 6 mm of ice
Humidity
0-95% relative
IP Rating (dust & water ingress)
IP66
Operating Temperature Range
-50°C to 70°C continuous operation -40°C to 70°C cold start
Shock
MIL-STD-810F "Transportation"
Storage Temperature Range
-55°C to 85°C
Vibration
IEC 60068-2-27
Imaging & Optical
Array format
320 × 240
Field of view (FOV)
48° × 39°
Measurement & Analysis
Programmable Presets
128
Physical
Dimensions (L x W x H)
13.7" × 18.4" × 12.8" (348 × 467 × 326 mm)
Weight
~37 lb (16.8 kg); Configuration Dependent
Power
Input Voltage
24 VDC (21-30 VDC) 24 VAC (21-30 VAC)
Power Consumption
24 VDC = 65 W; 195 W (max w/heaters) 24 VAC = 85 VA; 215 VA (max w/heaters)
PTZ
Pan Angle/Speed
Continuous 360°; 0.1° to 60°/sectd colspan="7"
Tilt Angle - Speed
+90° to -90°; 0.1° to 30°/sec
Video & Recording
Video Compression
Two independent channels of H.264, MPEG-4 & M-JPEG
Video Image Uniformity Optimization
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
Video Streaming Resolution
NTSC: D1 (720 × 480) 4SIF (704 × 480) VGA (640 × 480) SIF (352 ×240) QVGA (320 × 240) PAL: D1 (720 ×576) 4CIF (704 × 576) CIF (352 × 288)
Video Thermal AGC Modes
Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting
Video Thermal AGC Region of Interest [ROI]
Default, Presets and User definable to insure optimal image quality on subjects of interest
