Professional Thermal Monocular

Scion PTM

Model: Scion PTM166 640x512 60 Hz 13.8mm
Go to Product Support

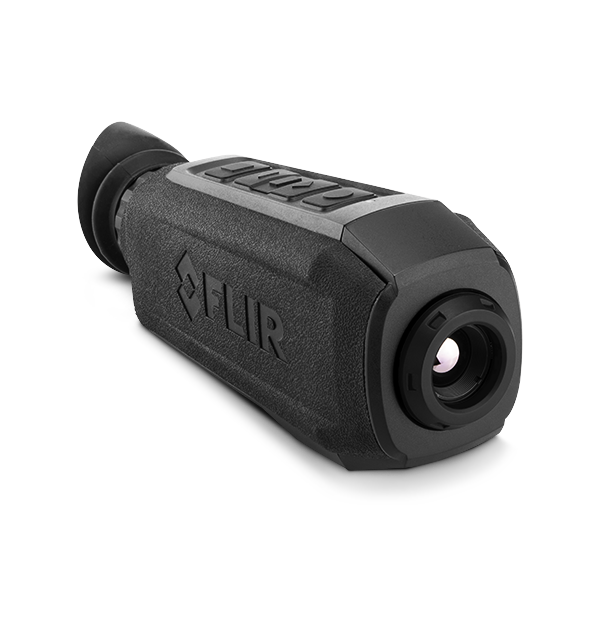

product image

Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion™ PTM packs high-performance thermal imaging and FLIR TruWITNESS® compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

$3,695.00
Buy Now
FREE Shipping
Shipping & Returns
Contact Sales

  • Live Encrypted Video Streaming

    Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.

  • Rich User Interface

    The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic

  • Superior Thermal Detection

    The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

Contact Sales

Want more information on this product?

Call 1-800-254-0630 to speak with a knowledgeable specialist.

Specifications
General
Image Capture
Yes
Overview
Detector Type
640 × 512
Display
Quad-VGA (1280x960) High definition display
Internal Memory
2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Size
227 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
Weight
Without Batteries: 452 g; With Batteries 572 g
System Overview
Eye Relief
16 mm
Color (housing)
Black
Lens System
14 mm
Optical Magnification
.7x
Display Focus
Manual
Core Technology
BOSON 12 µm Vox Microbolometer
Connections & Communications
Bluetooth
BLE 4.1+
Geo Positioning [GPS]
No
Video Recording
Yes
WiFi
Video Streaming, File Transfer
TruWITNESS Integration
Yes
Electrical & Mechanical
User Interface
USB-C; Power In; Video Out; Video and Image File Transfer
Environmental
Mounting
¼-20 Tripod Mount
Imaging & Optical
Digital Zoom
1X | 2X | 4X | 8X
Field of View
32° × 24°
Focus
Refresh Rate
60 Hz
Detection Range Performance [1.8 m man]
550 m
Meter Data
Auto Power Off
Yes
Power
Battery Life
Up to 4.5 hours at 20°C
Battery Type
6x CR123A 3V Lithium Battery
UI-UX
Temperature Imaging Modes
White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes
Scouting, Picture-in-Picture
Picture While Recording
Yes
Real Time Clock
Yes
DateTime Stamp
Yes
Magnetic Compass
Yes
Accelerometer
Yes
Media Gallery
OTS-Scion-Choosing a Thermal Palette
OTS-Scion-Choosing a Thermal Palette
Find a Dealer

Find a Dealer

Ready to buy? See our list of dealers.

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
