Vibration Monitoring Solution

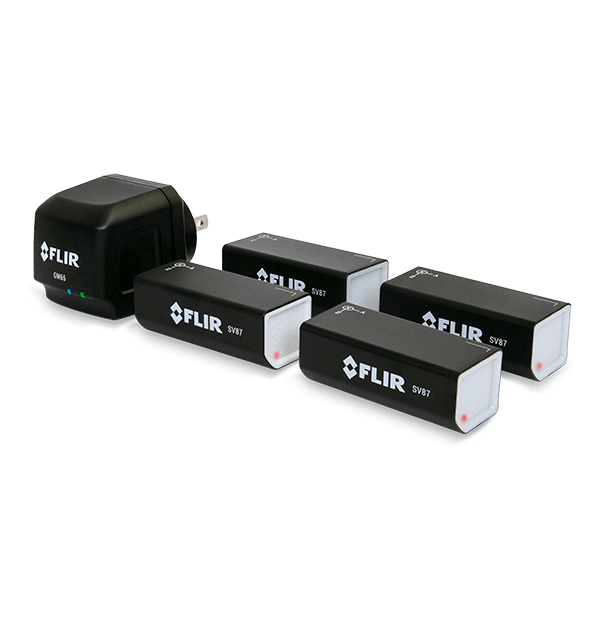

FLIR SV87-KIT

Go to Product Support
product image

Vibration trending and analysis can help detect serious problems with industrial machines long before the damage can be seen. That’s why the FLIR SV87-KIT Vibration Monitoring Solution is essential for manufacturing processes that use rotating machinery, industrial pumps, fans, gearboxes, and motors. The included remote monitoring gateway stores sensor data and wirelessly transmits readings in real time to a mobile device or PC. This allows professionals to make knowledgeable decisions about machine operation and maintenance without having to wait for the next manual inspection – reducing unplanned downtime, lowering operational costs, and improving profitability.

$999.00
FREE Shipping
Shipping & Returns

Wireless continuous vibration and temperature monitoring

  • Reduce manual inspections

    Wireless sensor measurements provide live remote condition of key mechanical assets.

  • Maintain safer operations

    Monitor conditions remotely from a mobile device or PC, and receive automatic alerts or emails as soon as abnormal conditions are detected.

  • Analyze data quickly

    View real-time data and trending charts, review data samples stored every 90 seconds, and export data to CSV files.

Specifications
Overview
Acceleration/Deceleration
±32 g
Data Format
Exported CSV file
Display
On Mobile apps and Windows® app - temperature, g-force (x, y, z) and acceleration (x, y, z). Live data, trending charts, historical data
Size
Gateway: 5.41 × 4.94 × 4.94 cm (2.11 × 1.93 × 1.93 in); Sensor: 6.5 × 2.5 × 2.7 cm (2.54 × 0.98 × 1.05 in)
Supported Operating Systems
iOS App: 9.0 or above
Android™ App: 7.0 or above
Windows® App: Windows 10 with Intel® Core™ i3 processor or better
Warranty
3-year warranty
http://www.flir.com/testwarranty/
Weight
Gateway: 66 g (0.15 lb); Sensor: 62 g (0.14 lb)
Compliance & Certifications
Certifications
ETL, IC, FCC, CE, RCM
Connections & Communications
Indicators
LEDs indicate power, sensor alarm and Wi-Fi status
WiFi
IEEE 802.11 b/g/n 2.4 GHz
Environmental
Altitude
2000 m
Drop test
Designed for 1 m (3.28 ft)
EMC
EN 301 489-1/-17; EN 55032/EN 55024; EN 61000-3-2/-3; FCC Part 15C, Part 15B
Encapsulation
Gateway: IP40; Sensor: IP67
Humidity (Operating and Storage)
10% to 95% relative humidity (RH) non-condensing
Operating Temperature Range
Gateway: -25 to 65°C (-13 to 149°F); Sensor: -30 to 80°C (-22 to 176°F)
Radio Spectrum
2.4 GHz (Wi-Fi and Bluetooth)
Shock & Vibration
Sensor: ±32 g
Storage Temperature Range
Gateway: -25 to 65°C (-13 to 149°F); Sensor: -30 to 80°C (-22 to 176°F)
Imaging & Optical
Sensor Type
원격 고정식 진동 및 접촉식 온도 센서(SV87)
Storage Capacity
On Gateway: 32 MB (approx. 5 days of data for 4 sensors); On Windows: Limited by PC hardware
Measurement & Analysis
Frequency Range
10 Hz to 1 kHz
Power
AC Voltage
Gateway: 100 V to 240 V AC, 50/60 Hz
Battery Life (Operating)
Sensor: 4 years (varies by usage)
Battery Type
Sensor: 3.6 V Lithium battery
Low Battery Indication
Sensor: Red LED
Storage Media
Memory Type
On Gateway: Flash memory; On Windows: PC hardware
System Interface
Alerts
When a user defined vibration or temperature threshold is exceeded, a warning alert or email is issued
