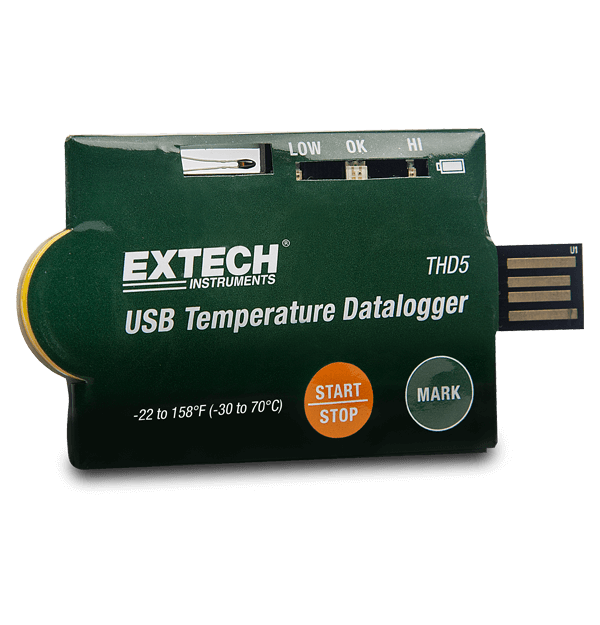

The Extech THD5 is a set of ten, one-time use USB temperature data loggers. Product complete with 10 data logging units (each with a CR2032 button battery and plastic bag). The THD5 is portable with a long battery life (approximately 1 year), user programmable settings, and status indication via red and green LEDs.
Specifications
| General | |
|---|---|
| Datalogging Interval | 30sec, 5min, 10mmin, 30min, 60min, 90min, 120min |
| Memory | 8,192 readings |
| Temperature [Air] | -22 to 158 °F (-30 to 70 °C) |
| Temperature [Air] Basic Accuracy | ±1.8 °F (1 °C) |
| Temperature [Air] Max Resolution | 0.1 ° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.2 × 1.7 × 0.1 (80 × 43 × 2.5mm) |
| Power | 1 × CR2032 (1.5V) battery |
| Warranty | 2 years |
| Weight | 0.4oz (10g) |
Resources & Support
Datasheet
Extech THD5 Datasheet
User Manual
Extech THD5 User Manual
Certification
Extech THD5 Declaration of Conformity
