Box Cameras With Integrated Video Analytics

TrafiBot HD

Support Page (temporary link)

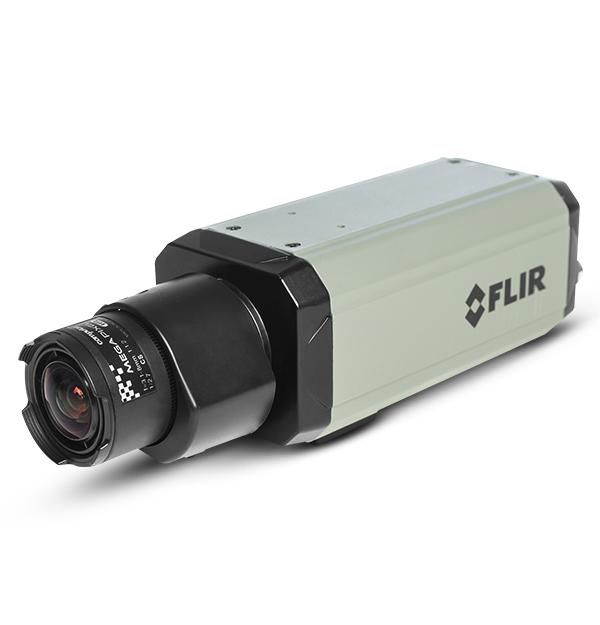

product image

FLIR’s TrafiBot HD combines field-proven video detection algorithms with advanced camera optics and powerful processing technology in a single housing. With a 1920 x 1080 resolution, TrafiBot HD is a network box camera that provides superior image quality, embedded AID analytics, and multi-stream encoding. This combination of technologies makes for a very cost-effective solution that delivers top-level performance.

All-in-One Camera Solution for Automatic Incident Detection

  • Automatic Incident Detection

    Detects traffic events, such as stopped vehicles and wrong-way drivers, as well as non-traffic events, including fallen objects.

  • Traffic data collection

    Captures data per lane, including traffic flow speed and zone occupancy, along with individual vehicle data, such as speed.

  • Easy to install

    TrafiBotHD can be controlled using Ethernet, Direct Optical fibre, or over coax.

Specifications
Overview
Description
Full HD IP camera with embedded AID
Boards per Rack
N/A
Encoding Format
H.264, MJPEG
Maximum Streams
Unicast and/or multicast, max 20
MTBF
> 300,000 hrs
Dimensions (H x W x D)
64 x 64 x 150 mm
Multi-Streaming
Dual streaming: H.264 (HP-MP) or MJPEG
Analytics
AID
AID Customizable overlay Video motion detection Image monitor (quality measurement) Tamper detection Privacy masks
Connections & Communications
Audio
1 full duplex stereo Optional: 24 bit audio transmission
Communication Standards
ONVIF profile S, NTCIP, SNMP
Data
RS232 or RS422/485
Digital Inputs
2
Digital Outputs
2
LAN Connector Type
10/100 Mbps RJ45 or SFP for fibre or IP over coax (ECO)
PTZ control
Yes
Video Input
1/ 2.8" CMOS
Electrical & Mechanical
Stand_Alone Form
12V DC or 24V AC or 802.3af PoE
Environmental & Approvals
Operating Temperature
-30° to +50°C (-22° to +122°F)
Imaging & Optical
Maximum resolution
Full HD (1920x1080) @ 30 fps
Power
Power
7W

TrafiBot HD
