Automatic incident detection

TrafiBot2

Go to Product Support
product image

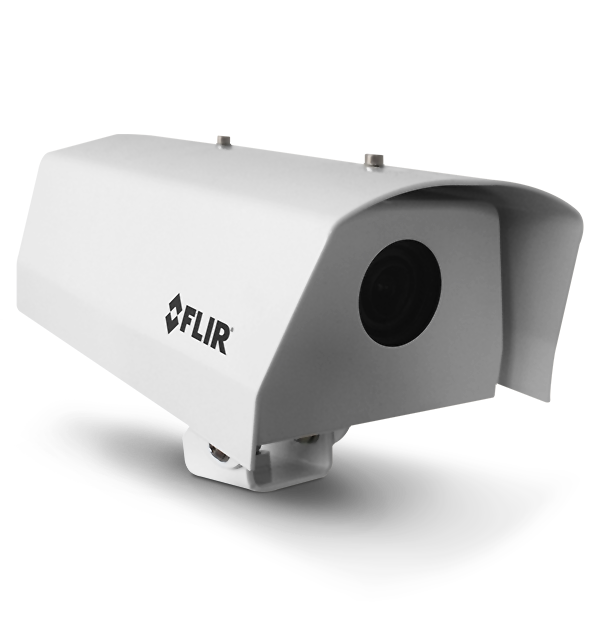

The FLIR TrafiBot2 is a compact, rugged camera solution for automatic incident detection. Combining full HD visual imaging with advanced video analytics, TrafiBot2's advanced processing generates traffic data and incident detection information for tunnels, bridges, and highways, including alerts on stopped vehicles, wrong-way drivers, and lost cargo.

Intelligent optical vision camera for safer traffic.

  • Advanced Image Quality

    TrafiBot2 offers superior low light performance without disturbing noise or smearing caused by car headlights.

  • Automatic Incident Detection

    TrafiBot2 provides critical traffic information, including alerts on stopped vehicles, wrong-way drivers, pedestrians, lost cargo, and traffic flow data.

  • Designed for Harsh Environments

    With a 316L stainless steel housing, TrafiBot2 meets IP66 and 67 requirements against dust and water ingress/immersion.

Specifications
Overview
Focal Length
2.8 -> 12mm 4.9 -> 49mm
Housing material
Stainless steel 316L
Weight
<2kg
Dimensions (H x W x D)
190 × 110 × 77mm
Analytics
Automatic Incident Detection
Traffic Events - Stopped vehicle, Speed drop, Levels of service, Overspeed, Wrong-way drivers, Traffic congestion, underspeed Non-traffic events -Smoke in tunnel, Pedestrian, Fallen object Technical alarms -Image quality, Camera tampering
Traffic Data Collection
Traffic flow data per lane - Traffic flow speed, zone occupancy Integrated vehicle traffic data - Average speed per vehicle class per lane (headway, gap time per length, class per lane), occupancy Individual vehicle traffic data - Speed, gap time, headway, vehicle classification
Connections & Communications
Connectivity
RJ45 connector or 1.5m cat6 pigtail with RJ45 plus 24Vac/dc. Optional fiber optics (MM/SM) or ethernet over coax
Supported Protocols
IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMPv1/2/3, SNMPv1/2, QoS, ONVIF, 802.1X, NTCIP-1205
Video Over Ethernet
Two independent encoders for streaming H.264 or M-JPEG, up to 20 streams/encoder
API
ONVIF Profile S
Interface
100 Mbps Ethernet (RJ-45) RJ45 pig-tail 1.5m, PoE(+) power supply Optional: Direct fiber connector (MM, SM Dual LC), 24Vac/dc power supply
Electrical & Mechanical
Coating
Powder coated RAL9016
Environmental
Mounting
Combined Wall/pole bracket. Ceiling mount bracket
Environmental & Approvals
Ambient temperature range for operation
*-30°C to +65°C with sunshield *-30°C to +55°C without sunshield
Ingress Protection
IP66, IP67
Relative Humidity
0% to 100%
Imaging & Optical
Image Sensor
1/2.8" Sony CMOS sensor
Maximum resolution
1920 × 1080
Snapshots
JPEG pull, FTP push
Streaming Resolution
Visual : up to 1920 × 1080 @ 30 Hz
Image Rotation
Mirror, Flip
Power
Power Consumption
Max. 13W heater off Max. 23W heater on
Power Options
Standard PoE(+) autodetecting, 24Vac/dc
Storage & Archive
Local Storage
Micro SD card, 64 GB, NAS
Local Recording
Continuous, scheduled, alarm
Contact Sales

Want more information on this product?

Call 888 404-2213 to speak with a knowledgeable specialist.

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
