Video and Radar-based Vehicle Presence Sensor

TrafiRadar

Go to Support Page

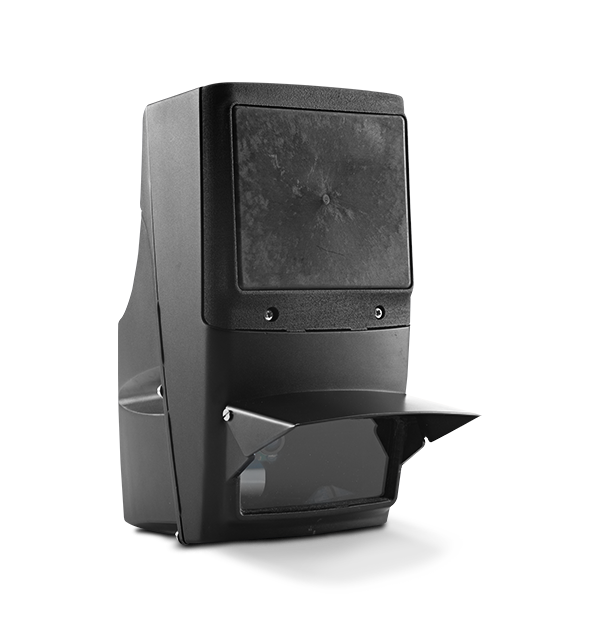

product image

FLIR’s TrafiRadar vehicle presence sensor is a combination of a video sensor and radar. TrafiRadar is typically used for stop bar and advance vehicle presence detection, traffic adaptive systems, and dilemma-zone protection and thus improves traffic safety and efficiency at signalized intersections. TrafiRadar will warn traffic light controllers whenever a vehicle is present in the dilemma zone, either extending green or red lights to improve overall safety.

Video and radar detection for safer intersections

  • Real-time radar visualization

    The TrafiRadar interface displays live video footage with an overlay of radar data for better overall visualization.

  • Smart traffic control

    TrafiRadar provides conditional presence detection, depending on vehicle speed and class, and supports traffic adaptive systems.

  • Compact and cost-effective

    TrafiRadar is a convenient above-ground solution that is easy to install, calibrate, and configure.

Specifications
Overview
Detection Functionalities
Conditional presence detection per lane (outputs, events via TCP/IP or serial)
Dimensions
4.5 x 2.2 x 6.5 in (115 x 57 x 165 mm)
MTBF
> 100,000 hours
Camera
Color megapixel camera & Doppler radar
Controllers
For type 170, 2070, NEMA TS1 & TS2 and ATC controllers
Zones
Dilemma zone warning per phase and per vehicle (outputs, events via TCP/IP or serial)
Connections & Communications
Connection
BPL (broadband over power line) for power supply and communication
Data
Data per lane and per vehicle (location, count, speed)
Output
4 outputs (output expansion board(s) possible), SDLC via PIM module, TCP/IP
Network
IP-addressable
Environmental & Approvals
EMC
TrafiRadar Sensor: FCC Part 15 Class B, 2004/108/EC TI X-Stream Edge: FCC Part 15, Class B
Protection Grade
IP68
Temperature Range
-34° to 74°C (-29° to 165°F)
Other
Filter_Environment
Intersections
Power
Power Consumption
TrafiRadar Sensor: Average power: 7 W (Peak power: 8.5 W) TI X-Stream Edge: 4 W
Power Supply
24 VDC
Video & Recording
Video Compression
H.264, MPEG-4, MJPEG

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
