High Performance Scalable Server Optimized for United VMS Server and Storage Solutions

USS Enterprise 2U Server

Go to Product Support
product image

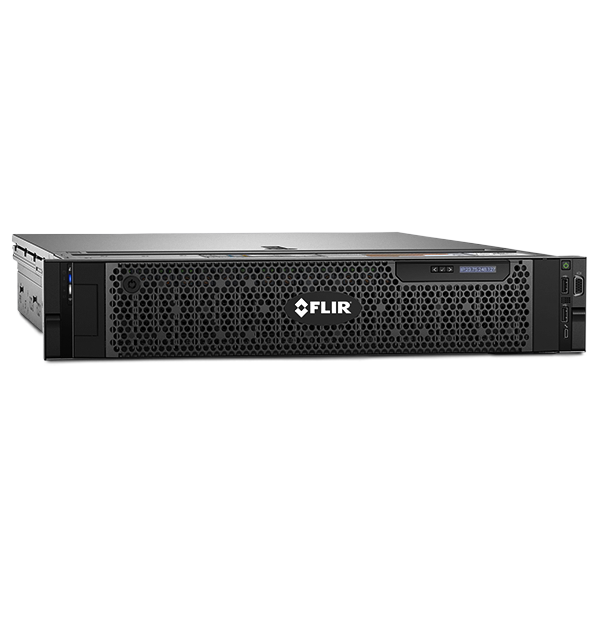

The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server, offering up to 216TB of internal storage. Designed to address the requirements of IT environments, the server is pre-loaded with system management capabilities, excellent system scalability, redundancy and value in a compact chassis.

The Industry Standard for Internal Storage Servers

  • Robust Software / Hardware

    Optimized for FLIR Latitude software, the Enterprise is easy to expand with hot-swappable hard drives.

  • Efficient Operation

    The Enterprise-class server operates without need for extra cooling and is easy to install.

  • High Performance

    Reduce unit count and Total Cost of Ownership (TCO).

Specifications
Overview
Dimensions
86.8 x 434.0 x 678.8 (mm)
Memory
16 GB RDIMM RAM
Operating System
Microsoft Windows Server 2016 Embedded
Warranty
3-year ProSupport and Next Business Day On-site Service (upgrades available)
Weight
Max: 33.1 kg (72.91 lb)
Chipset
Intel C610
Form Factor
2U rack
Processor
Enterprise Eight-core Intel® Xeon® Silver processor
RAID Controller
Hardware RAID controller with Flash Backed Cache
System Management
iDRAC9 Express (Enterprise License Upgrade Option)
OS Drive
240GB Mirrored SSD
Compliance & Certifications
Certifications
Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC
Connections & Communications
Communication
Embedded Quad Port 1Gb NIC
I/O Slots
4 PCIe slots
Processor Sockets
2
USB Peripherals
2 x 3.0 and 2 x 2.0
Physical
Rack Support
ReadyRails™ II sliding rails
Power
Power Supply
Dual, Hot-plug, Redundant Power Supply, 750W, 100~240VAC 50/60Hz (auto)
Storage & Archive
Hard Drive Bay
18 hard drive chassis
Hard Drive Storage
Enterprise class, Hot-swap HDDS Max Internal Storage: 216TB
Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
