High Performance Scalable Server Optimized for United VMS Server and Storage Solutions

USS Premium 2U Server

Model: USS-PRM-24R5-16
Go to Product Support

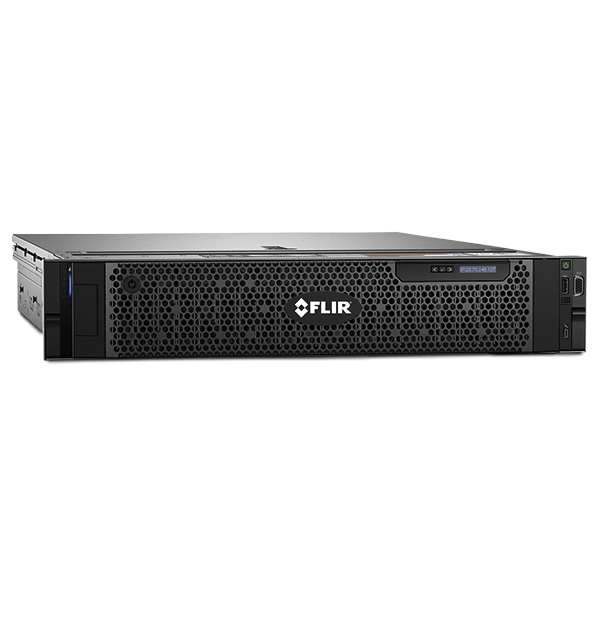

product image

The FLIR Universal Systems Solutions (USS) Premium Server delivers the ideal balance of resources and affordability for your business, offering up to 112TB of storage and a new level of performance for video surveillance applications of all types. The Premium server is ideal for businesses seeking a multipurpose rack server that offers excellent internal storage, redundancy and value in a compact chassis. Designed to address the requirements of IT environments, the unit comes loaded with system management capabilities, best-in-class processing performance and the ability to expand for future storage requirements.

  • High Performance

    Optimized for top efficiency, the server can connect to multiple networks in parallel with up to 112TB internal storage.

  • Cost Savings

    With a balanced set of resources, expandability, and affordability, the unit reduces installation time and overall Total Cost of Ownership.

  • Peace of Mind

    Easy to expand and maintain, the USS Premium 2U Server is built for redundancy, reliability, and ease of use.

86.8 x 434 x 647 mm (3.41" x 17.08" x 25.47")
Operating System
Microsoft Windows Server 2016 Embedded
3-year ProSupport and Next Business Day On-site Service (upgrades available)
Max of 31.11 kg (68.58 lb)
Intel C620
Form Factor
2U Rack Server
Enterprise Eight-core Intel® Xeon® Silver
RAID Controller
Hardware RAID controller with Flash Backed Cache, RAID-5
Systems Management
iDRAC9 Express (Enterprise License Upgrade Option)
OS Drive
240GB Mirrored SSD, BOSS Controller
Compliance & Certifications
Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC
Connections & Communications
Embedded Dual Port 1Gb NIC
USB Port
Front: 2 x USB 2.0, Rear: 2 x USB 3.0
I/O Slots
1 PCIe slots
Rack Support
ReadyRails Sliding Rails
Power Consumption
110V: Max Potential Power: 650.6 watts 2219.9 btu/h 220V: Max Potential Power: 635.8 watts 2169.4 btu/h
Power Supply
Dual, Hot-plug, Redundant Power Supply, 750W, 100~240VAC 50/60Hz (auto)
Storage & Archive
Hard Drive Bay
Flexible storage with up to 14 3.5” drives
Hard Drive Storage
Enterprise class, Hot-swap HDDS 7.2K RPM SATA Max Internal Storage: 112TB
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
