Multi-functional video detection boards

FLIR VIP-IP

Go to Support Page

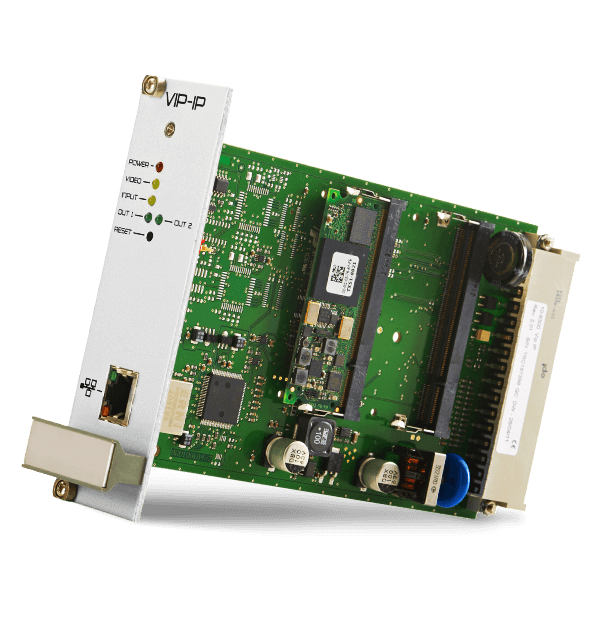

product image

The VIP series offers multi-functional Video Image Processing modules for traffic control. VIP boards integrate automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video in one board. VIP modules have been installed for road and tunnel projects all over the world.

Next-Generation Vehicle Presence Boards

  • Powerful, Reliable Intersection Control

    VIP boards integrate vehicle presence detection and traffic data collection into one cost-effective, powerful solution

  • Flexible, Robust Data Collection

    Deloy up to 24 Presence Detection zones, and 8 Data Collection zones in addtion to stop bar and advanced vehicle presence detection.

  • Easy Setup in the Field

    No computer required -- just connect to a video monitor for user-friendly setup of zone positioning and detection.

Specifications
Overview
Description
AID module for IP cameras
Boards per Rack
4 (1/2 19" rack) or 8 (19" rack)
Dimensions
130 x 41 x 190 mm
Encoding Format
H.264, MPEG-4, MJPEG
Maximum Streams
Max 4 unicast or multicast
MTBF
200,000 hrs
Power
< 4W
Multi-Streaming
Single H.264 or MPEG-4 or MJPEG
Analytics
AID
AID overlay
Connections & Communications
Audio
No
Communication Standards
SNMP
Data
No
Digital Inputs
1
Digital Outputs
2
LAN Connector Type
10/100 Mbps RJ45
PTZ control
No
Video Input
IP video: VGA, 4CIF or D1
Electrical & Mechanical
Stand_Alone Form
Box, 24 V DC (+/- 15%)
Environmental & Approvals
Operating Temperature
-34° to +74°C (-29° to 165°F)
Imaging & Optical
Maximum resolution
D1 @ 30 fps

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
