Compact Night Vision Clip-On System

FLIR CO-Mini

Model: CO-Mini GEN 2HD MG
Go to Support Page

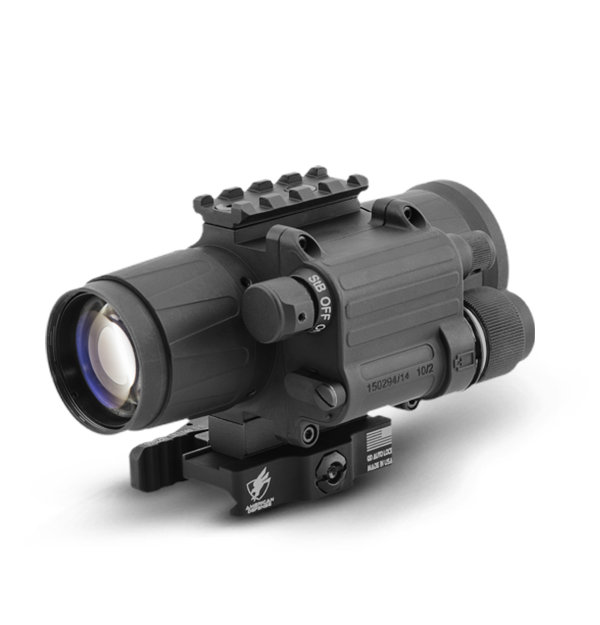

product image

Designed for short- to medium-range observation and rapid target acquisition, the FLIR CO-Mini clip-on system converts a standard day optic into a tactical night vision device. The CO-Mini installs in front of magnified day scopes in seconds via objective lens adaptor or quick-release Picatinny mount. Use of the existing day scope reticle allows consistent shot placement without the need to rezero.

Compact, Instantaneous, Tactical Night Vision

  • Constant Tactical Awareness

    Quick-release Picatinny mount and day scope reticle make installation and shot precision possible in seconds.

  • True Muscle Memory

    Compact design and clip-on mounting allow familiar shooting position, release, and follow through.

  • Wide Intensifier Selection

    Numerous Gen 2+ and Gen 3 image intensifier tube options, including “Quick Silver” and “Ghost” black and white displays, cater to performance demands and user-preference.

Specifications
System Overview
Auto Power Off
Yes
Dimensions (L x W x H)
125 × 68 × 55 mm (4.9 × 2.7 × 2.2 in)
Focus Range
20 m to Infinity
Product Weight
0.43 kg (0.95 lbs)
Tripod Mount
-
Warranty
2 Year
Height of the Scope Axis above Rail
-
Lens System
F/1.25; 38 mm
Magnification
1× (recommended to use with up to 6x day time optics)
Eye Relief [mm]
-
IIT Generation
Gen 2+ HD (High Definition) MG
Optional Accessories
Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #44, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102
Photocathode Type
Multi-Alkali
Windage_Elevation Adjustment
-
Accessories
Included Accessories
Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying CasePicatinny adapter for AWReC (Advanced Wireless Remote Control), Special, Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue
Connections & Communications
Remote Control
Wireless
Environmental & Approvals
Operating Temperature
-40°C to +50°С (-40°F to +122°F)
Storage Temperature
-50°C to +50°С (-58°F to +122°F)
Imaging & Optical
Diopter Adjustment
-
Field of View
22°
Resolution
55-72 lp/mm
Reticle Type
-
Automatic Brightness Control
Yes
Bright Light Cut_off
Yes
Exit Pupil Diameter [mm]
27.5 mm
Infrared Illuminator
Detachable Long Range IR
IR Indicator
No
Manual Gain Control
Yes
Reticle Color
-
Power
Battery life
60 hrs (3V) / 40 hrs (1.5V)
Power Supply
CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1)
Low Battery Indicator
Yes

Want more information on this product?

Call (888) 959-2259 to speak with a knowledgeable specialist.
