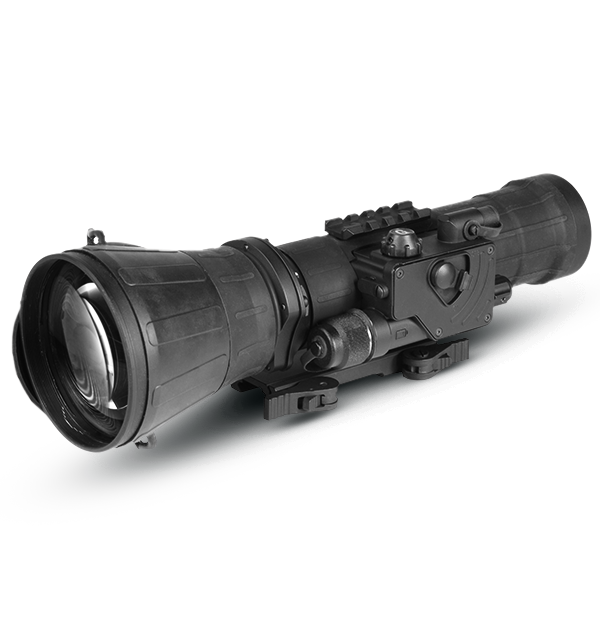

FLIR CO-XLR-LRF
145 mm Night Vision Clip-On System
Product Variations
The FLIR CO-XLR-LRF is the most advanced night vision clip-on in its family. High-performance image intensifier tubes and extra long-range 145 mm optical lens generate superior imagery for engaging targets at extended distances. Installed in front of a standard day optic, the CO-XLR-LRF offers immediate high-quality night vision and precise shot placement—no rezeroing needed. Included XRL IR illuminator maintains excellent image quality in adverse lighting conditions.
Elite Long-Range Performance
145 mm lens and Gen 3 intensifier tubes generate outstanding long-range night vision and quickly detect targets downrange.
Front-mounting allows consistent ballistic reticle use and maintains familiar shot position, release, and follow-through.
Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.
Specifications
| Sensor & Optical | |
|---|---|
| Automatic Brightness Control | Yes |
| Bright Light Cut_off | Yes |
| Diopter Adjustment | - |
| Exit Pupil Diameter [mm] | 50 mm |
| Eye Relief [mm] | - |
| Field of View | 7° |
| Focus Range | 25 m to Infinity |
| IIT Generation | Gen 3 Alpha (High Performance) MG |
| Infrared Illuminator | Detachable Long Range IR |
| Lens System | F/1.8; 145 mm |
| Magnification | 1x (recommended to use with up to 16x day time optics) |
| Photocathode Type | GaAs |
| Resolution | 64-72 lp/mm |
| Environmental & Approvals | |
|---|---|
| Operating Temperature | -40°C to +50°С (-40°F to +122°F) |
| Storage Temperature | -50°C to +70°С (-58°F to +158°F) |
| Power | |
|---|---|
| Auto Power Off | Yes |
| Battery Life | Up to 60 hours |
| Low Battery Indicator | Yes (in FOV) |
| Power Supply | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| File Storage & Communication | |
|---|---|
| Remote Control | Wireless |
| UI-UX | |
|---|---|
| IR Indicator | No |
| Manual Gain Control | Yes |
| Reticle Color | - |
| System Overview | |
|---|---|
| Height of the Scope Axis above Rail | 40 mm |
| Reticle Type | - |
| Warranty | 2 Years |
| Windage_Elevation Adjustment | - |
| Physical | |
|---|---|
| Dimensions [L x W x H] | 304 × 104 × 94 mm (12.0 × 4.0 × 3.7 in) |
| Product Weight | 1.30 kg (2.86 lbs) |
| Tripod Mount | - |
| Accessories | |
|---|---|
| Included Accessories | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-Device, Battery, Picatinny adapter for AWReC (Advanced Wireless Remote Control, AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
| Optional Accesories | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
