Infrared Camera for Methane and VOC Detection

FLIR GF320

Model: GF320, 14.5°
Go to Support Page
product image

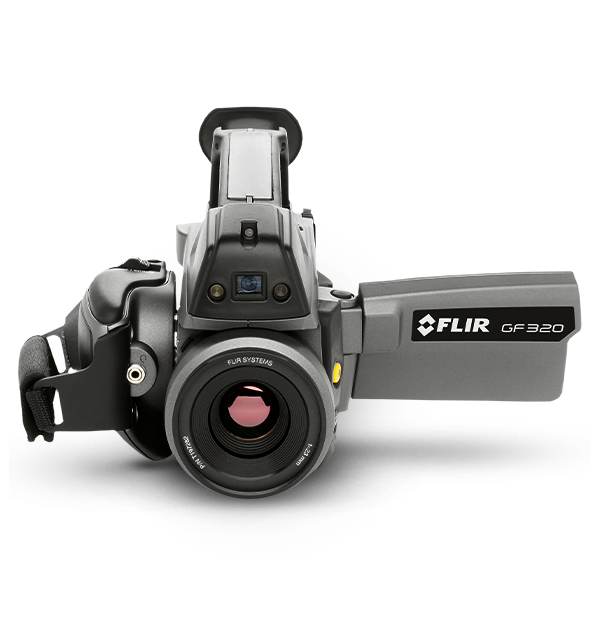

The FLIR GF320 detects hydrocarbon and volatile organic compound (VOC) emissions from natural gas production and use. With this optical gas imaging camera, inspectors can check thousands of components and see potential gas leaks in real-time. The GF320 is lightweight, offers both a viewfinder and LCD monitor, and has direct access to controls. Embedded GPS data helps in identifying the precise location of faults and leaks, for faster repairs.

Fast, Unbeatable Gas Detection

  • Safer, More Efficient Surveys

    GF320 inspections are up to nine-times faster than with traditional tools, and don't require close contact with components.

  • Sensitive Enough for Small Leaks

    GF320 measures temperatures up to 350°C with ±1°C accuracy, allowing you to note temperature differentials and improve gas plume detection.

  • Save the Environment, and Revenue

    Reduce revenue loss while improving regulatory compliance and protecting the environment by finding and fixing leaks quickly.

The Sensitivity to Visualize Even Small Leaks

The Sensitivity to Visualize Even Small Leaks

With its superior resolution, thermal sensitivity, and the option of a High Sensitivity Mode, the FLIR GF320 allows you to visualize leaks so you can pinpoint the exact source of the emissions and begin repairs immediately. In addition, the GF320 can accurately measure temperatures, allowing you to note temperature differentials and improve visual contrast for better gas plume detection.

Specifications
Overview
Detector Type
Cooled InSb
Field of View
14.5° × 10.8°
Profile
1 live line (horiz. or vert.)
Zoom
1 – 8× continuous digital
Area Box
5 (min./max./avg.)
Laser Spot
Yes
Connections & Communications
Video Out
HDMI
Imaging & Optical
Focus
Auto & Manual
Global Positionsing System [GPS]
Yes
Resolution
320 × 240
Spectral Response
3.2 – 3.4 µm
Total Pixels
76.8
Adjustable Viewfinder
Tiltable OLED, 800 × 480 pixels
Color LCD
4.3"; 800 × 480 Pixels
High Temp Option
Yes
MPEG Video Recording
Yes
Radiometric JPG
Yes
Radiometric Video [15Hz]
No
Video Camera wLamp
3.2 MP
Measurement & Analysis
Accuracy
±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range >+100°C (>+212°F)
Spot Meter
10.0
Temperature Range
-20°C to 350°C (-40°F to 662°F)
Thermal Sensitivity
<15 mK @ +30°C (+86°F)
Delta T
Yes
Shipping Information
Packaging Size
00 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
