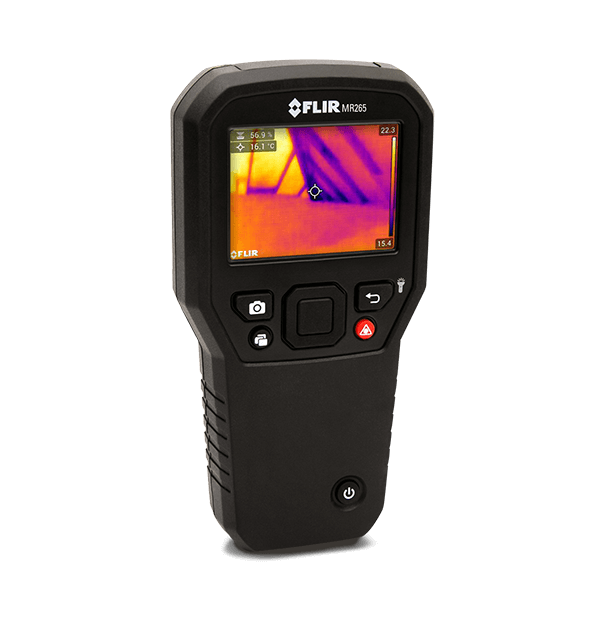

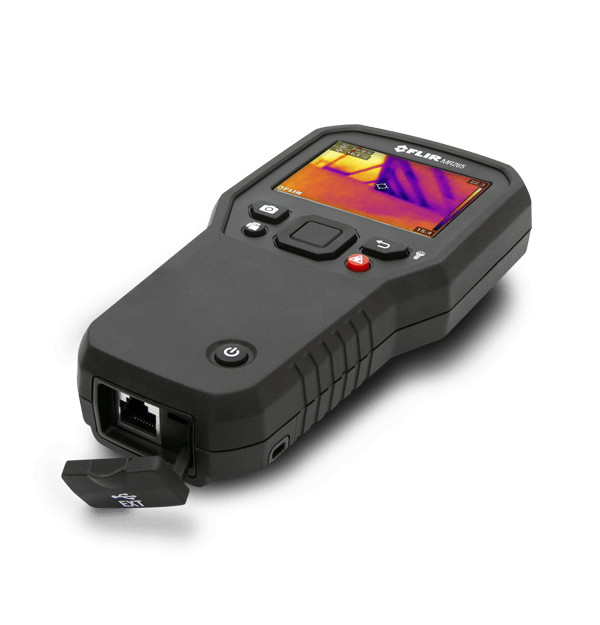

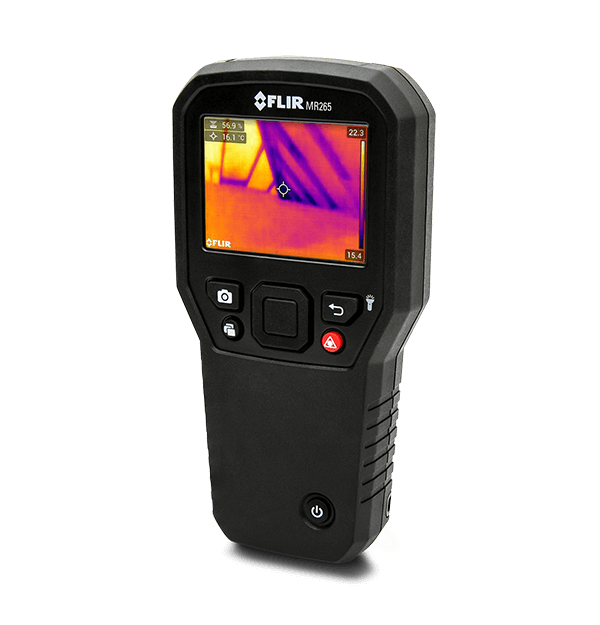

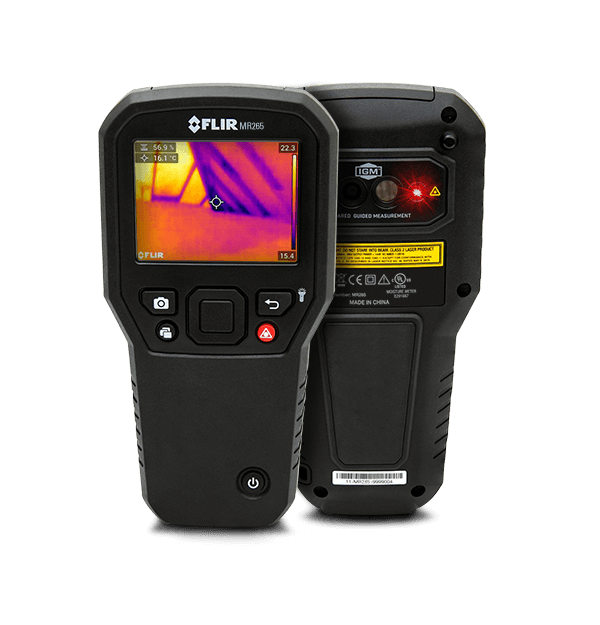

Moisture Meter and Thermal Imager with MSX®

FLIR MR265

Go to Product Support
product image

The FLIR MR265 is a professional pin and pinless moisture meter with thermal imaging designed to show you exactly where to investigate issues related to moisture, air leaks, and insulation voids. Featuring IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging enhancement) technology, the MR265 helps you quickly scan and target problem areas, visually guiding you to the spot where you can confidently take measurements, analyze readings, and ensure that problems are fixed. Using FLIR Thermal Studio™, you can then create and share professional reports that include findings and proof of repairs – giving your clients peace of mind that mold, rot, or moisture challenges have been resolved.

$1,019.99
Buy Now
FREE Shipping
Shipping & Returns
Contact Sales
  • Get to the problem faster

    Pinpoint problems at the source using the 160 × 120 (19,200 pixels) built-in thermal camera, 2 MP visual camera, bright worklight, laser, and MSX, which embosses visual details onto thermal images

  • Work smarter

    Assess moisture with pinless or pin measurements, and choose from a variety of optional, compatible probe accessories for flexibility and convenience on the job

  • Improve communication with customers

    Document both thermal and visual images before and after repairs, and create professional reports using FLIR Thermal Studio to better communicate problems and repairs

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
MSX
Embosses visual details on full resolution thermal image
Thermal image palettes
Iron, Rainbow, Arctic, White-Hot, Black-Hot
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
11 Material Groups
Includes
FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard
Imaging & Optical
Digital Camera
2MP, 83° FOV (70.5° HFOV x 56° VFOV)
Display Type
QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display
Field of View [W x H]
Thermal FOV 57° x 44°
Image Modes
Thermal, Visual, MSX®
Image Update Speed Frequency
9 Hz
Imaging Detector
FLIR Lepton microbolometer
Laser Orientation
Single laser pointer to center of thermal image
MSX
Embosses visual details on full resolution thermal image
Sensitivity
<150 mK
Spectral Response
8 to 14 µm
Thermal image minimum focus distance
10 cm (4 in)
Thermal image palettes
Iron, Rainbow, Arctic, White-Hot, Black-Hot
Thermal Image Resolution [W x H]
19,200 pixels (160 × 120)
Measurement & Analysis
Image Calibration
Automatic with manual lock scale option
Measurement Resolution
0.1
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
11 Material Groups
Pinless Measurement Depth
19 mm (0.75 in) max
Pinless Moisture Range
0 to 100
Response Time Pin Mode
750 ms
Response Time Pinless
100 ms
Communication & Data Storage
Internal Memory
8 GB
Saved Image File format
Radiometric JPEG
Stored Image Capacity
15000 images
Power
Auto Power Off
Programmable: off, 5, 10, 20 and 30 minutes
Battery
Rechargeable 3.7 V nominal, 5400 mAh LiPo
Continuous Run Time
10 hours maximum
Typical Usage
4 work weeks
General
Includes
FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard
Packaging Size
28.5 × 14.5 × 10.5 cm (11.2 × 5.7 × 4.7 in)
Environmental & Certifications
Agency Approvals
CE, RCM, FCC Part 15B, UKCA
Certification Standards
EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1
Drop test
2 m (6.6 ft)
Warranty
10 year
