Night Vision Goggles

Nyx-7

Model: Nyx-7 GEN 2ID
Go to Support Page

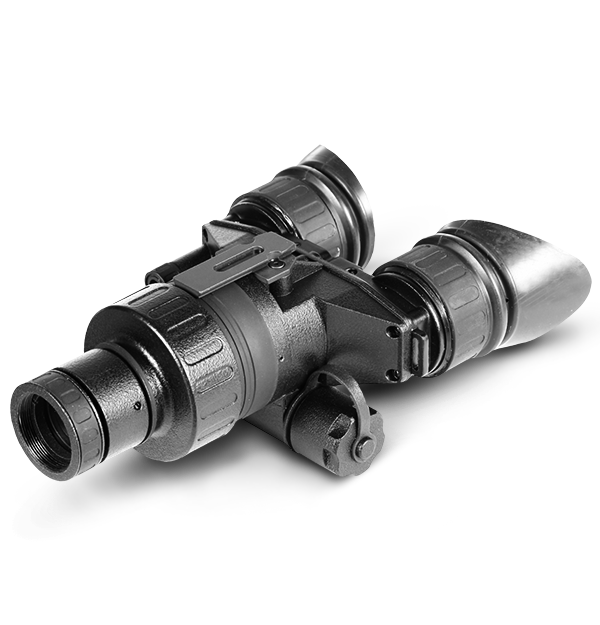

product image

The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.

Reliable Vision in a Customizable System

  • Compact, Rugged Night Vision

    Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions

  • Adaptable Design

    Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.

  • Sensible Technology

    Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.

Specifications
System Overview
Auto Power Off
Yes
Dimensions (L x W x H)
150 × 102 × 70 mm (5.9 × 4 × 2.8 in)
Focus Range
0.25 m to Infinity
Product Weight
0.45 kg (0.9 lbs)
Tripod Mount
-
Warranty
2 Years
Height of the Scope Axis above Rail
-
Lens System
F/1.2; 24 mm
Magnification
1x standard (3x, 5x optional)
Eye Relief [mm]
16 mm
IIT Generation
Gen 2+ ID (Improved Definition)
Photocathode Type
Multi-Alkali
Windage_Elevation Adjustment
-
Accessories
Optional Accessories
ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37,ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4
Included Accessories
One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box
Connections & Communications
Remote Control
-
Environmental & Approvals
Operating Temperature
-40°C to +50°C (-40°F to +122°F)
Storage Temperature
-50°C to +70°C (-58°F to +158°F)
Imaging & Optical
Diopter Adjustment
±5 diopter
Field of View
40°
Resolution
47-54 lp/mm
Reticle Type
-
Automatic Brightness Control
Yes
Bright Light Cut_off
Yes
Exit Pupil Diameter [mm]
14 mm
Infrared Illuminator
Yes
IR Indicator
Yes (In FOV)
Manual Gain Control
No
Reticle Color
-
Power
Battery life
Up to 60 hours
Power Supply
CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)
Low Battery Indicator
Yes (In FOV)
