Multipurpose Ultra HD Low Light Camera

Quasar 4K Fixed Box

Support Page (temporary link)

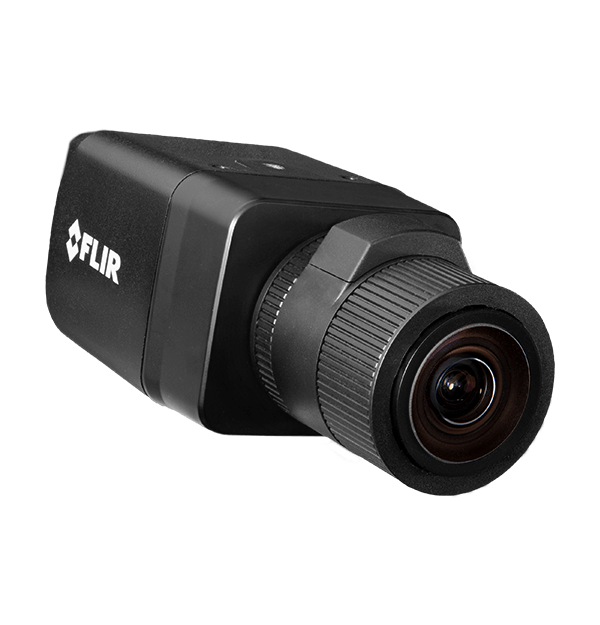

product image

The Quasar 4K Fixed Box camera offers evidentiary detail, combined with a low light FHD camera for nighttime operations. Utilizing programmable schedules, the camera can switch from 4K UHD mode during daytime to 1080p Enhanced Low Light Performance mode at night, for optimal image capture based on the best scene resolution with sWDR.

The ideal day/night camera for demanding deployments

  • True Day/Night camera

    The Quasar 4K Fixed Box is ideal for challenging deployments found in tunnel entrances, security check-points, critical infrastructure, and casinos.

  • Adaptive Streaming technology

    Combined with FLIR’s United VMS, our Adaptive Streaming technology ensures minimum impact on your network and IT infrastructure.

  • Compact form factor

    The camera accepts specialized housings, ranging from explosion-proof to extreme weather, as well as super wide to telephoto lenses.

Specifications
Overview
Alarm Output
1 Relay Contact
AES
1/1.75 to 1/10,000 (auto)
BLC
On / Off
Day/Night Mode
Yes
Dimensions
76 x 100 x 63mm
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Privacy Zones
Yes
Scanning Mode
Progressive
Security
User account with password protection and IP filter
Signal to Noise Ratio
More than 50dB when AGC off
Tamper Detection
Yes
Warranty
According to FLIR RMA Policy and Process Notice document
Alarm
Alarm In
1 Dry Alarm Contact
Audio
Audio Input
1 Audio Line Input, G.711 a/µ-law, AAC support
Audio Intensity Detection
Yes
Audio OUT
1 Audio Line Output
Compliance & Certifications
International
CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM
MTBF [hrs]
663132.0
ONVIF Compliance
Onvif Profile S & G
USA
UL, FCC Part 15 (subpart B, class A)
Connections & Communications
Analog Output
1 x composite video output BNC
Ethernet
10/100, auto sensing, half / full duplex (RJ45)
Network Protocol
TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Internet Explorer 10+, Firefox 50+, Chrome 55+
Environmental
Humidity
90% (non-condensing)
Operating Temperature
-20°C ~ 50°C (-4°F to 122°F )
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Imaging & Optical
AGC
Auto
DSS
max. shutter 1/7.5(6.25)~1/60(50) / min.
Image Sensor
1/2.5" BSI CMOS
Lens Type
CS mount (lens not included), P-Iris/DC Iris with External Auto Back Focus control
Mechanical IR Cut Filter
Yes
Noise Reduction
New generation 3DNR technology
Sensitivity
0.07 (color)/0.01 (BW)
Sensor Resolution
3840 x 2160
WDR
sWDR
White Balance
Auto / ATW / Manual / One Push
Physical
Enclosure
Camera body: aluminum Front cover: PC+ABS plastic
Unit Weight
0.61kg (1.34 lbs.)
Power
Input Voltage
802.3af PoE, 12 VDC, 24 VAC
Power Connection
2-pin terminal block, LED indicator
Power Consumption
7.5W
Video & Recording
Rate Control
CVBR/CBR
Resolution Range
Scalable from D1 to 4K
SD Card Recording
microSDXC up to 32GB (Class 10)
Video Compression
Enhanced H.265, enhanced H.264 main profile/high profile/baseline profile (MPEG-4 Part 10/AVC), Motion JPEG
Video Motion Detection
Yes
Maximum Performance
H.264 30/25 FPS @ 4K (NTSC/PAL) or H.265 27/22 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL)
Video Bandwidth
Configurable between 64Kbps and 20Mbps
