VISIBLE PTZ SECURITY CAMERAS

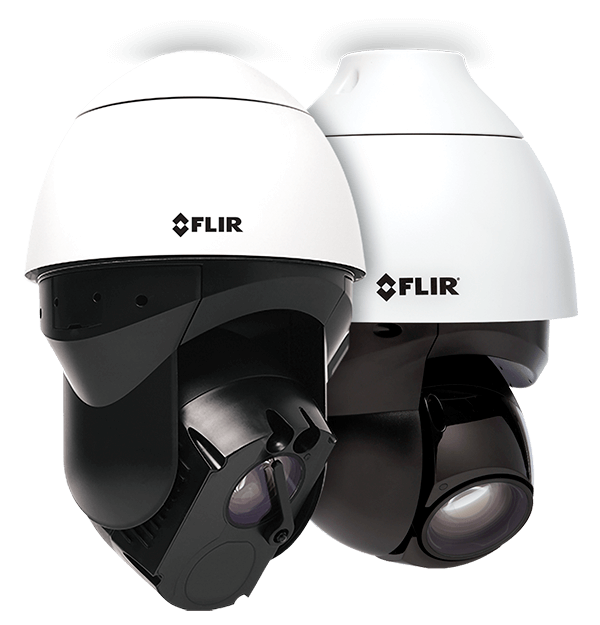

Quasar™ 4K IR PTZ Cameras

Model: Quasar 4K 31x IR PTZ
Go to Product Support

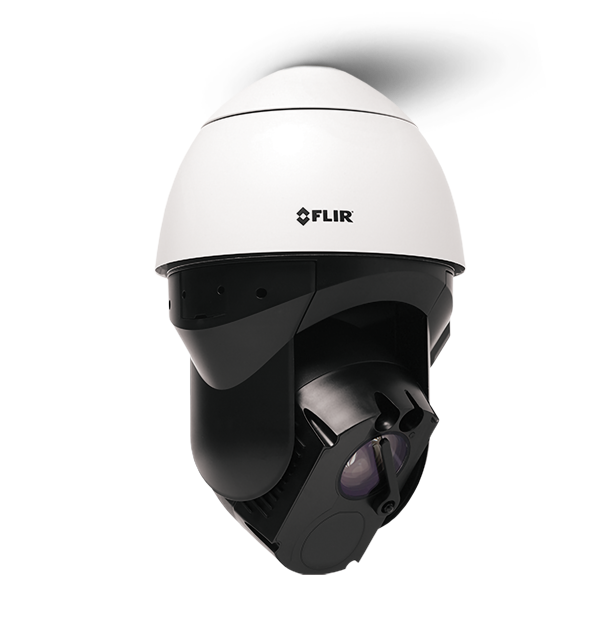

product image

With crisp 4K video resolution, on-board long-range IR illumination, and 22x or 31x optical zoom options, FLIR Quasar™4K IR PTZ cameras deliver critical situational awareness. Exceptional field of view gives operators the ability to seamlessly monitor key details throughout large areas. The combination of high-performance optics and sensors, exceptional low light visible imaging, and effortless integration with all major third-party VMS and FLIR United VMS makes Quasar 4K IR PTZ cameras an ideal solution for critical infrastructure sites and remote facilities that require close monitoring.

Contact Sales
  • BEST-IN-CLASS IMAGING AND COVERAGE

    Sharp images, wide coverage, and onboard IR illuminator outperform other PTZ cameras, while delivering real-time situational awareness and post-event evidentiary support.

  • RUGGEDIZED FOR EXTREME ENVIRONMENTS

    Both cameras are IP66-rated, while the 31x version offers additional ruggedized features like expanded operating temperature, NEMA-4x rating, PT de-icing, built-in lens wiper, and remote-operated washer accessory for isolated or hard to access installations.

  • SECURE AND USER-FRIENDLY

    Simplified web interface allows quick access to critical operations, while advanced cybersecurity features enforce best-practices to help keep your facility safe.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Specifications
Overview
3D Noise Reduction
On / Off
AGC Control
Auto
Alarm Output
2 relay out
Day/Night: IR Cut Filter
Auto / Manual
Dimensions
268 X 409 mm (10.55 x 16.1 in.)
Firmware Upgrade
Flash upgrade via network (1GB Flash / 2GB RAM)
Security
User credentials with policy, protection from brute force attack, TLS
Warranty
According to FLIR RMA Policy and Process Notice document
Compliance & Certifications
International
CE marked, EN 50130-4, EN61000-6-4 (Class A), RoHS, LVD, NEMA 4X, WEEE
ONVIF Compliance
ONVIF Profile S
USA
FCC Part 15 (subpart B, class A)
Connections & Communications
Alarm IO
4 dry contact In - 2 relay Out
Configuration
Remote: via web access or supported VMS
Ethernet
10 /100/1000 Mbps Base-T auto sensing, half / full duplex (RJ45)
Network Protocol
IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, ONVIF Profile S, IEEE 802.1X, TLS
Remote Configuration
Via web access or supported VMS
Supported Web Browser
Chrome (recommended), Firefox, Edge, and Safari (no ActiveX required)
Environmental
Humidity
0% ~ 95% relative
Operating Temperature
-40° to 0° C (-40° to 140°F) cold start
Storage Temperature
-55° to 85° C (-67°to 185° F)
Imaging & Optical
Digital Zoom
31x / Up to 8x
Focal Length
6.5 mm to 202 mm
Focus Mode
Auto / Manual
Image Sensor
1/1.8" CMOS
Iris Control
Auto
Maximum resolution
3840x2160 (4KUHD)
Minimum Illumination
0.25 Lux (color) @ (f1.6 AGC On, 30FPS) / 0.10 Lux (BW) @ (f1.6 AGC On, 30 FPS)
Noise Reduction
On / Off
Optical Zoom
31x
Optical/Digital Zoom
31x / Up to 8x
WDR
Shutter WDR, 130db
White Balance
Auto, ATW, Manual
Wide Dynamic Range
Shutter WDR, 130db
Physical
Enclosure Rating
IK10 Upper / IP66 Overall
Unit Weight
9.12 Kg (20.1 lbs.)
Power
Input Voltage
24VAC (+/- 10%) Universal POE injector
Power Connection
PoE / Terminal Block
Power Consumption
Max 61W 24VAC/43W POE with heater and IR on
PTZ
Auto Flip
Mechanical / Off
Horizontal Viewing Angles
64° (Wide) to 3° (Tele)
Manual Speed
Pan: 0.1° to 90°/s, Tilt: 0.1° to 60°/s
Pan/Tilt Travel
360° continuous /-10°to 190°
Preset Accuracy
Pan: 0.16° Tilt: 0.18°
Preset Speed
5° to 280° / sec
Presets
256
Presets - Preset Accuracy
Pan: 0.1° Tilt: 0.1°
Proportional Pan & Tilt
On / On (pan and tilt speed proportional to zoom ratio)
Tilt Travel
-10° to 190°
System Integration
Alarm In
4 dry contact in
Audio Bandwidth
Configurable between 16 kbps and 64 kbps
Audio Connections
Terminal block
Bi-directional Audio
Full duplex, line in/line out, G.711
Distance | Angle of illumination
Up to 200 m (656 ft.) | 6° / 30° / 90°
LED Type
High efficiency SMD
Video & Recording
Maximum Performance
H.264 30/25 fps @ 4K (NTSC/PAL) & H.264 30/25 fps @ VGA (NTSC/PAL)
Rate Control
CBR / VBR
Resolution Range
Scalable from VGA to 4K
Video Compression
Two independent channels of H.264 & M-JPEG
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
