Immersive 360° surveillance camera

Quasar Hemispheric Mini-Dome

Model: Quasar 6MP Hemispheric Mini-Dome
Go to Support Page

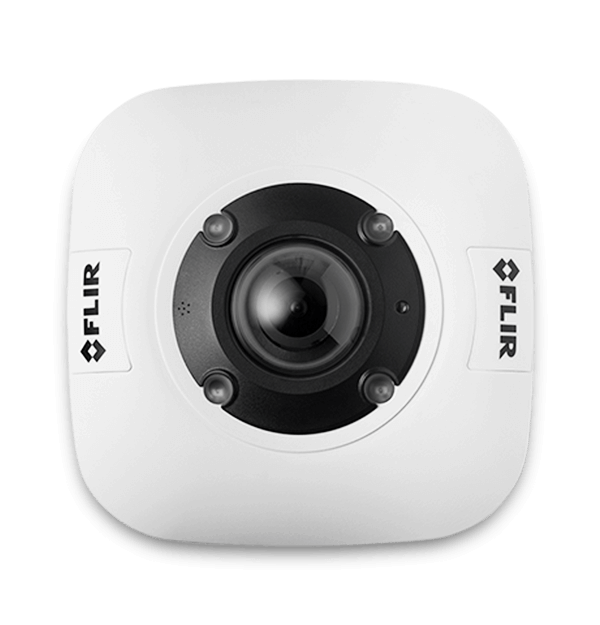

product image

The FLIR Quasar Hemispheric Mini-Dome camera provides an immersive, 360° real-time and forensic experience using the FLIR United VMS ControlCenter. With an indoor/outdoor vandal-resistant housing—coupled with two-way audio, IR-illumination and I/O interface—the Quasar Hemispheric camera is fully featured to address a wide range of applications. Available in 6MP and 12MP models, the camera supports user-customized views through digital presets without affecting the recording of the complete 360° view, creating full coverage, panoramic video surveillance.

Immersive, 360° real time surveillance

  • Panaromic view

    When used with FLIR United VMS, the panoramic footage from the Quasar Hemispheric Mini-Dome can be viewed normally using digital presets.

  • Wall and Ceiling Modes

    The FLIR Quasar Hemispheric mini-dome offers versatile mounting options to suit any scene.

  • Vandal-Resistant, Indoors and Outdoors

    The camera features a durable housing that resists tampering, making the Quasar Hemisphere Mini-Dome ideal for high risk situations.

Specifications
Overview
Alarm Output
1 relay contact, 300V AC / DC at 130 mA maximum
AES
1.0 to 1 / 10,000 (auto)
Day/Night Mode
Smart / Auto / On / Off
Dimensions
163 x 163 x 104 mm (6.43 x 6.43 x 4.09 in.)
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Privacy Zones
On / Off - 5 zones
Scanning Mode
Progressive
Security
User account with password protection and IP filter
Sensitivity
0.6 (color)/0.03 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE
Signal to Noise Ratio
±50 dB
Tamper Detection
On / Off / schedule
Warranty
According to FLIR RMA Policy and Process Notice document
Alarm
Alarm In
1 dry alarm contact
Audio
Audio Connections
Terminal block
Bi-directional Audio
Full duplex, line in and line out, G.711, G.726
Compliance & Certifications
International
CE (EN55022-1998 Class A; EN50130-4; EN60950; RoHS) CE (EN55022-1998 Class A; EN50130-4; EN60950; RoHS)
USA
FCC 47 CFR Part 15, Subpart B, Class A; UL 60950
Connections & Communications
Ethernet
10/100/1000 Ethernet, auto sensing, half/full duplex (RJ45)
Network Protocol
IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP,HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP,SNTP, QoS, ONVIF Profile S, IEEE 802.1X
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Internet Explorer 10+
Environmental
Humidity
90% (non-condensing)
Storage Temperature
-20° to 70° C (-4° to 158° F)
Operating Temperature2
-10° to 50° C (-10° to 122° F)
Imaging & Optical
DSS
1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode
Image Sensor
1/1.8" BSI CMOS
Lens Type
Fisheye 1.05mm, 180° HFOV, F2.8, D/N
Mechanical IR Cut Filter
Yes
Noise Reduction
2D / 3D / Color
Sensor Resolution
3072 x 2048
White Balance
Auto / ATW / One push / manual
Wide Dynamic Range
On / Off - 3 levels
Backlight Compression
On / Off
IR Illumination
Peak Emission Wavelength [nm]
850.0
IR Illuminator
IR Distance
Up to 6 m (20 ft.)
Angle of Illumination
360°
LED Type
High power / high efficiency SMD type
Measurement & Analysis
Automatic Gain Control
Auto
Physical
Enclosure
Indoor/Outdoor: IK10 rated vandal IP66
Unit Weight
0.95 Kg (2.09 lbs.)
Bubble F-Stop
F0.0
Bubble Rating
IK10 vandal resistant polycarbonate
Power
Input Voltage
12 VDC PoE (Class 0)
Power Connection
DC terminal block or PoE
Power Consumption
8W / 10W with IR
Video & Recording
Rate Control
CBR/VBR
Resolution Range
Scalable from D1 to 3072x2048
Video Motion Detection
On / Off / schedule
Maximum Performance Camera De-warping
H.264 20FPS @ 2048x2048 + D1 (NTSC/PAL)
Maximum Performance Software De-warping
H.264 30/25 FPS @ 3072x2048 + 720p (NTSC/PAL)
SD Card Recording1
Micro SDXC up to 128GB (Class 10)
Video Bandwidth
Configurable between 64Kbps and 20Mbps

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
