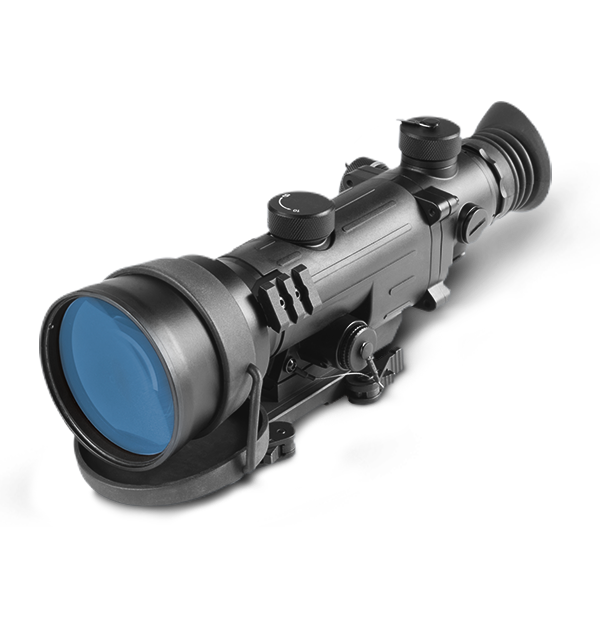

FLIR Vampire 3x
Night Vision Riflescope
The FLIR Vampire 3x is a CORE intensifier tube-based night vision riflescope designed for precise shot placement in minimal light conditions. A solid aluminum housing protects key electrical components from severe weather and shot recoil while an included extra long-range IR illuminator improves downrange image quality. An onboard tactical rail makes mounting additional lasers or illuminators simple.
Pinpointed Tactical Night Vision
Durable CORE intensifier tube and included XLR IR illuminator offer clear vision in minimal lighting.
Dust- and water-resistant solid aluminum housing withstands grueling environments and shot recoil.
Built-in tactical rail allows quick installation of detachable lasers and illuminators.
Specifications
| Sensor & Optical | |
|---|---|
| Automatic Brightness Control | No |
| Bright Light Cut_off | No |
| Diopter Adjustment | ±4 diopter |
| Exit Pupil Diameter [mm] | - |
| Eye Relief [mm] | - |
| Field of View | 10.5° |
| Focus Range | 10 m to Infinity |
| IIT Generation | CORE |
| Infrared Illuminator | Detachable Long Range IR |
| Lens System | F/1.5; 108 mm |
| Magnification | 3x |
| Photocathode Type | N/A |
| Resolution | 60-70 lp/mm |
| Environmental & Approvals | |
|---|---|
| Operating Temperature | -51°C to +45°C (-59°F to +113°F) |
| Storage Temperature | -55°C to +70°C (-67°F to+158°F) |
| Power | |
|---|---|
| Auto Power Off | No |
| Battery Life | Up to 40 hours |
| Low Battery Indicator | Yes |
| Power Supply | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| File Storage & Communication | |
|---|---|
| Remote Control | No |
| UI-UX | |
|---|---|
| IR Indicator | No |
| Manual Gain Control | No |
| Reticle Color | Red on Green |
| System Overview | |
|---|---|
| Height of the Scope Axis above Rail | - |
| Reticle Type | Crosshair |
| Warranty | 2 Years |
| Windage_Elevation Adjustment | 1/2 MOA |
| Physical | |
|---|---|
| Dimensions [L x W x H] | 318 x 87 x 95 mm (12.5 x 3.4 x 3.7 in) |
| Product Weight | 1.36 kg (3 lbs) |
| Tripod Mount | - |
| Accessories | |
|---|---|
| Included Accessories | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Packing Box, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Soft carrying Case, Lens Tissue |
| Optional Accessories | XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85 |
