High Performance LWIR SLS Camera

FLIR X6900sc SLS

Model: X6901sc SLS
Go to Product Support

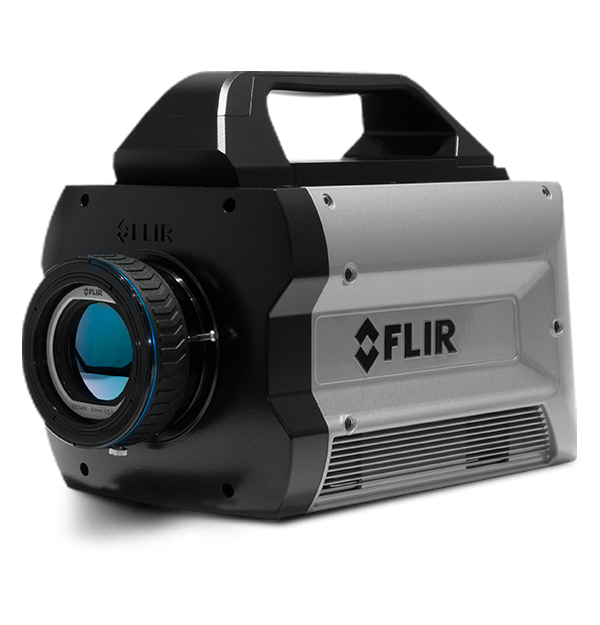

product image

The FLIR X6900sc SLS is an extraordinarily fast, highly sensitive LWIR camera designed for scientists, researchers, and engineers. The strained layer superlattice (SLS) detector offers shorter snapshot speeds, wider temperature bands, and better uniformity than current LWIR or MWIR alternatives. With advanced triggering, on-camera RAM/SSD recording, and a four-position motorized filter wheel, this camera offers the functionality to stop motion on high-speed events both in the lab and at the test range.

Contact Sales

High Sensitivity Cameras for R&D and Science Applications

  • High Speed without Compromise

    Record at high frame rates and with fast integration times without compromising image resolution

  • Versatile and Configurable

    Customizable features and full-frame recording to on-camera RAM allow you to capture critical data – quickly

  • Advanced Streaming and Analysis

    Control and analyze data live using industry-leading software and advanced data output

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Overview
Dynamic Range
14-bit
Integration Time
270 ns to ~full frame
Optional Temperature Range [with band matched optics]
250°C to 1500°C/482°F to 2732°F (ND1); 500°C to 3000°C/932°F to 5432°F (ND2)
Size [L x W x H ] w/o Lens
249 × 157 × 147 mm (9.8 × 6.2 × 5.8 in)
Standard Temperature Range [with band matched optics]
-20°C to 350°C (-4°F to 662°F)
Weight [without lens]
6.35 kg (14 lbs)
System Overview
Digital Zoom
1x, 4x, 4:3
Resolution
640 × 512
Connections & Communications
Command and Control
GigE, USB, RS-232, Camera Link, CXP (GenICam protocol supported over GigE or CXP)
Synchronization Modes
Sync In, Sync Out, Trigger In
Environmental & Approvals
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F)
General
Mounting
2 × ¼ in. -20, 1 × 3/8 in. -16, 4 × #10 -24, Side: 3x ¼ in. -20 (each side)
Power
24 VDC (<50 W steady state)
Imaging & Optical
Available Lenses
17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Camera f-number
f/2.5
Close-up Lenses/Microscopes
1x
Frame Rate [Full Window]
Programmable; 0.0015 Hz to 1004 Hz
Image Time Stamp
Internal precision timestamp. IRIG-B AM decoder, TSPI accurate
Lens Interface
FLIR FPO (4-tab bayonet)
On Camera Image Storage
RAM (volatile): 16 GB, up to 26,000 frames full frame
SSD (non-volatile): includes 512GB compatible with >4 TB
Operability
≥98% (≥99% typical)
Overlay
Customizable
Palette
Selectable 8-bit
Pixel Clock
355 MHz
Radiometric Data Streaming
Simultaneous Gigabit Ethernet (GigE Vision), Camera Link, CoaXPress (CXP)
Readout Modes
Asynchronous integrate while read, asynchronous integrate then read
Readout Type
Snapshot
Standard Video
HDMI, SDI, NTSC, PAL
Subwindow Modes
Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows)
Video Modes
HD: 720p/50/59.9 Hz, 1080p/25/29.9 Hz, SD: NTSC, PAL
Measurement & Analysis
Ambient Drift Compensation [with factory cal]
Yes
Measurement & Analysis
Automatic Gain Control
Manual, Linear, Plateau equalization, ROI, DDE
Other
Filtering
4-position motorized filter wheel, standard 1-inch filters
Sensor Cooling
Closed cycle rotary
Shock_vibration
40 g, 11 msec ½ sine pulse/4.3 g RMS random vibration, all 3 axes
Thermal Sensitivity_NETD [typical]
Performance
Accuracy
≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical)
Thermal Imaging
Detector Type
Strained-Layer Superlattice
Focus
Manual
NETD
40 mK (typical)
Visible Camera
Detector Pitch
25 µm
Spectral Range
7.5 µm (lower), 11.5–12.5 µm (upper)
