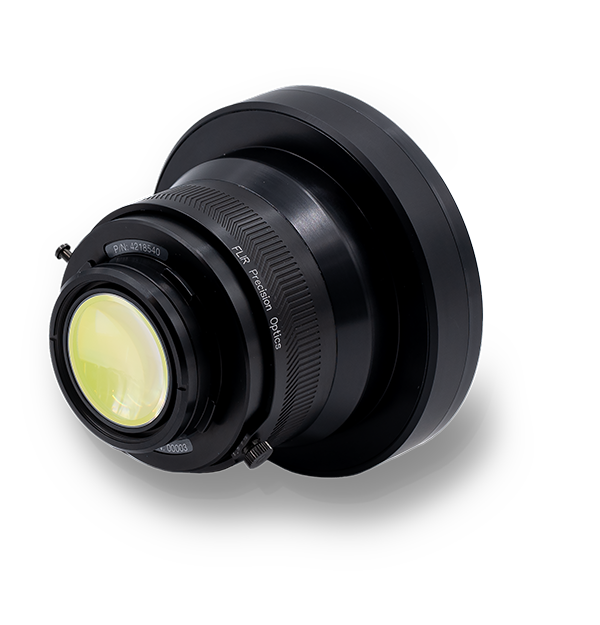

100 mm f/2.5 Broadband FPO manual lens (4218540)

Go to Product Support

1-5 µm 100 mm f/2.5 FPO Manual Bayonet broadband lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Communication & Data Storage
Interface
4-tab FPO manual focus bayonet
Environmental & Certifications
Operating Temperature Range
-20°C to 50°C (-4° to 122°F)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
General
Average Transmission
82.73%
Weight
1.07 kg (2.35 lbs)
Imaging & Optical
Diameter
108 mm (4.26 in)
F_number
f/2.5
Focal Length
100 mm
Focus
Manual
Focus Range
3 m to infinity
Length
76 mm - 82 mm (2.99 in - 3.22 in)
Imaging & Optical
Distortion
<1%
Hyperfocal Distance
185 m/250 m (at 4.2 µm/3 µm)
Spectral Band
1.0 - 5.5 µm
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
