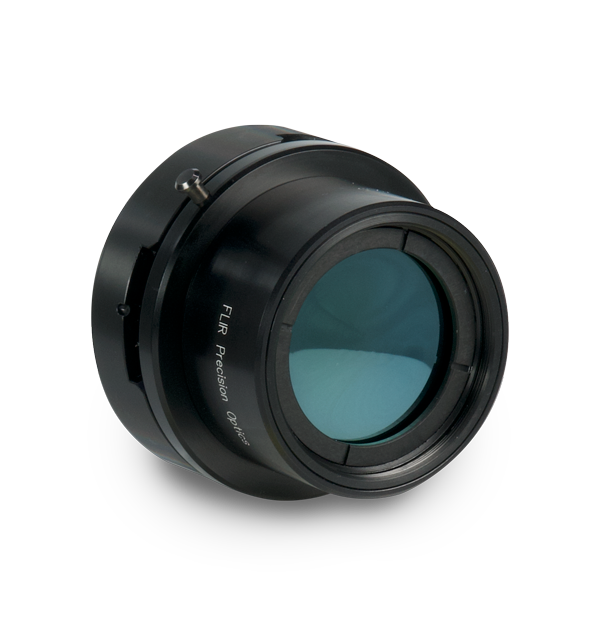

1x microscope f/2.5 LWIR FPO manual lens

Go to Product Support
product image

1x microscope lens for FLIR R&D/Science cameras, including A67xx SLS, A85xx SLS, X69xx SLS, and X85xx SLS.

Specifications
Overview
Spectral Band
7.5 - 12 µm
Communication & Data Storage
Interface
4-tab FPO manual focus bayonet
Environmental & Certifications
Operating Temperature Range
-20°C to 50°C (-4° to 122°F)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
General
Average Transmission
91.2%
Weight
0.23 kg (0.5 lbs)
Imaging & Optical
Distortion
0.20%
Imaging & Optical
Depth of Field
100 µm (f/2.5 camera) or 250 µm (f/4 camera)
Diameter
52 mm (2.04 in)
F_number
f/2.5
Focal Length
1x microscope
Focus
Manual
Focus Range
0.06 m to infinity
Length
31 mm (1.21 in)
Object Distance
30 mm (1.18 in)
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
