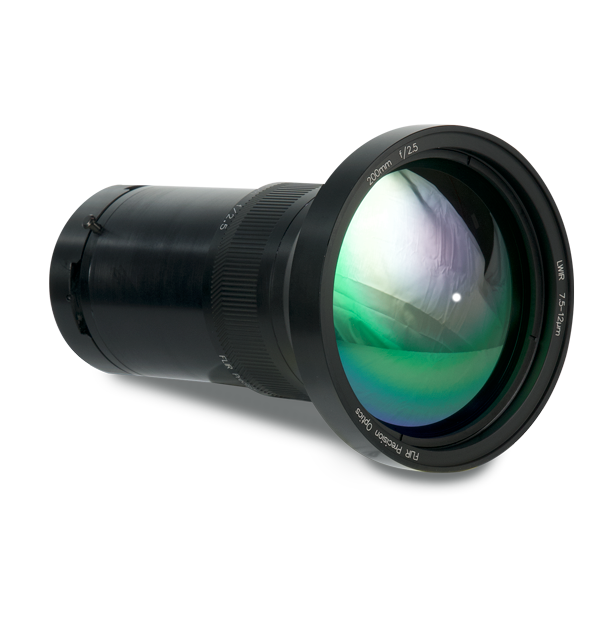

200 mm f/2.5 LWIR FPO manual lens

Go to Product Support
product image

Manual LWIR lens for FLIR R&D/Science cameras, including A67xx SLS, A85xx SLS, X69xx SLS, and X85xx SLS.

Contact Sales
Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Environmental & Certifications
Operating Temperature Range
-20°C to 50°C (-4° to 122°F)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
General
Average Transmission
90.52%
Weight
0.79 kg (1.74 lbs)
Imaging & Optical
Diameter
105 mm (4.14 in)
F_number
2.5
Focal Length
200 mm
Focus Range
3 m to infinity
Length
148 mm (5.83 in)
Imaging & Optical
Distortion
<3%
Hyperfocal Distance
346 m (at 8.9 µm)
Spectral Band
7.5 - 12 µm
UI-UX
Focus Method
Manual
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
