IGM™ Moisture Meter


Go to Product Support
product image

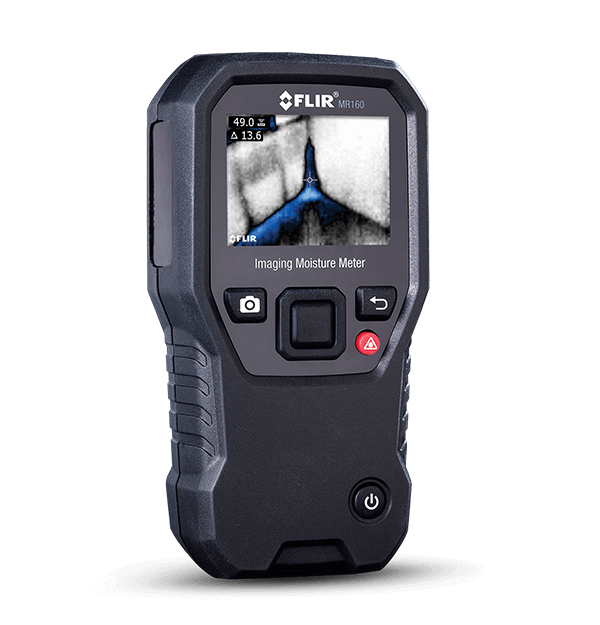

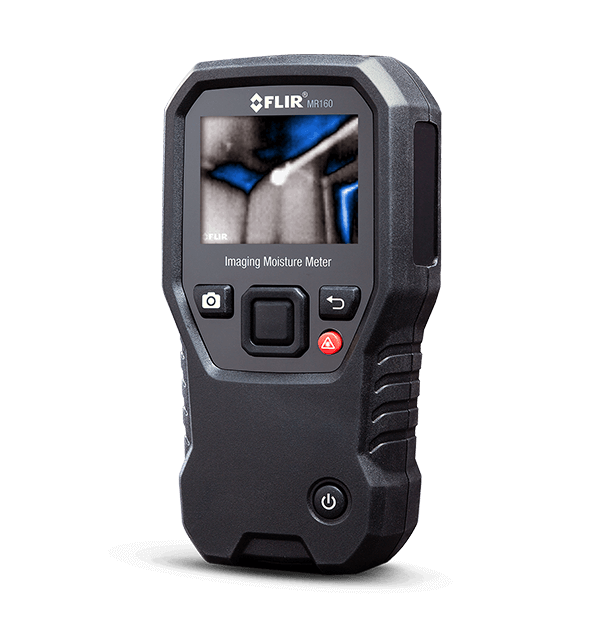

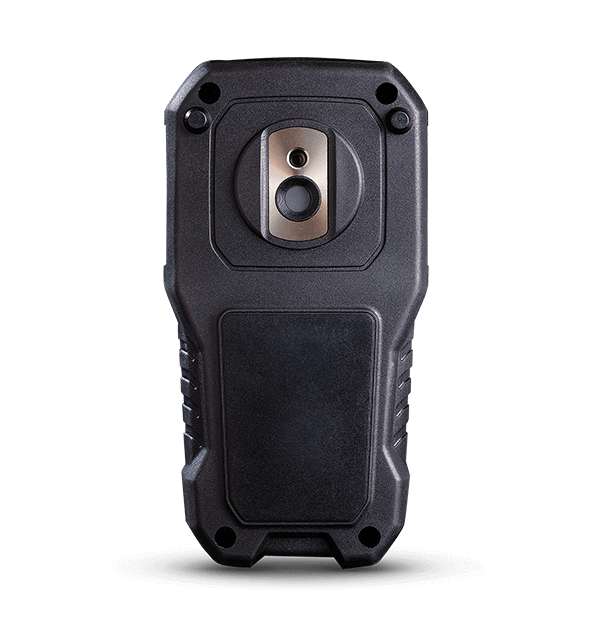

Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box — or as the perfect complement to any high resolution thermal camera you already own.

FREE Shipping
Shipping & Returns
Contact Sales
  • Troubleshoot Quickly

    Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.

  • Identify and Verify Moisture

    Use the built-in thermal imager to locate areas of moisture. Verify the moisture level using pin and pinless moisture measurement.

  • Portable, Tough, Durable

    Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Dimensions (H x W x L)
QVGA (320 x 240 pixel) 2.3" 64k color TFT
Laser Orientation
Single laser pointer to center of thermal image
Packaging Size
12.1 cm x 14 cm x 33.1 cm
10 year
Compliance & Certifications
Agency Approvals
FCC class B, CE, UL
Drop test
9.8’ (3m)
Imaging & Optical
Image Display
Color moisture alert
Minimum Focus Distance
10cm (4")
Spectral Response
Thermal Image Resolution
4800 pixels (80 × 60)
Thermal Imaging Detector
FLIR Lepton® microbolometer
Field of View [W x H]
51° × 38°
Measurement & Analysis
Image Calibration
Image Frame Rate
9 Hz
Measurement Resolution
Pin Moisture Groups
9 material groups
Pin Moisture via Ext Probe Range [Accuracy]
0–100% WME (± 5%)
Pinless Measurement Depth
0.75" (19mm) Max
Pinless Moisture Range
0–100 relative measurement
Response Time Pin Mode
Response Time Pinless
Thermal Sensitivity
Certification Standards
EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)
3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Power Requirements
Integrated rechargable battery
Battery power\Cont Run Time
18 hours max
Battery power-Typical Usage
4 work weeks
Storage Media
Saved Image File format
BMP with measurement values overlaid
Stored Image Capacity
9999 images
