Science Kits

FLIR A-Series

Model: A400 Standard Science Kit Go to Product Support
product image

FLIR A400, A500, and A700 Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software. The Standard kit includes a FLIR A400, A500, or A700 Image Streaming camera, 24° lens with automatic/remote and manual focusing, as well as FLIR Macro Mode. The Professional kit has the added benefits of MSX® image enhancement, radiometric data transmission over Wi-Fi, and a close-up lens for accurate thermal measurements on small components.

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Unparalleled accuracy, connectivity, and analysis

  • SIMPLIFIED ANALYSIS & COLLABORATION

    FLIR Research Studio’s simple Connect - View - Record - Analyze workflow helps you obtain and analyze thermal results quickly

  • ACCURACY YOU CAN COUNT ON

    Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement

  • UNMATCHED CONNECTIVITY

    Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)


SEE MORE THAN EVER BEFORE

Even the most demanding datasets can now get a fully-fledged upgrade with FLIR Research Studio. This premium, advanced thermal analysis software offers a simplified workflow for displaying, recording, and evaluating data from multiple FLIR cameras simultaneously – allowing operators to quickly interpret and understand critical information.

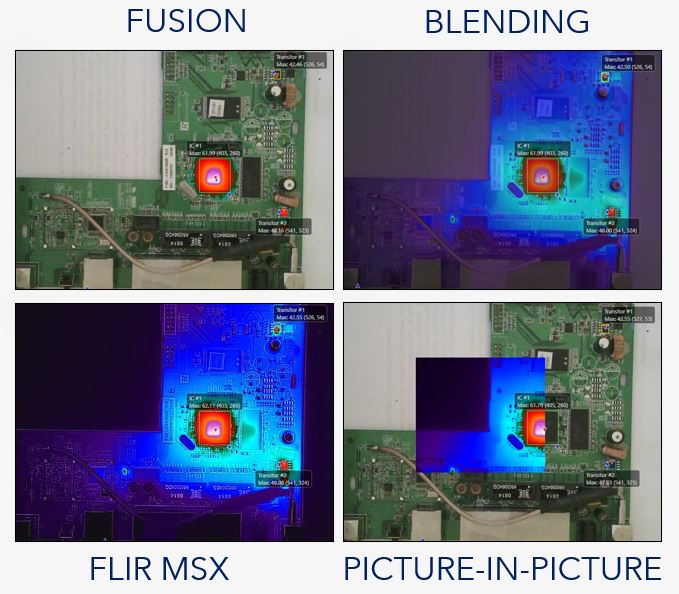

For more distinct data, FLIR Research Studio fuses visible imagery and infrared data to provide a rigorously detailed analysis of virtually any environment.

Learn more







maintenance page_repair.jpg

flir care logo.png     flir protect logo.png

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Learn More

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
IR Resolution
320 × 240 pixels
Detector Pitch
17 µm
Pixel Pitch
17 µm
Spectral Range
7.5–14.0 µm
Detector Type
Uncooled microbolometer
Dynamic Range
16-bit
Thermal Sensitivity/NETD
Lens dependent: <30 mK to <40 mK
Frame Rate
30 Hz
Standard Temperature Range
-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Focus
One-shot contrast, motorized, manual
Imaging & Optical
Detector Pitch
17 µm
Detector Type
Uncooled microbolometer
Digital Data Streaming to PC
Gigabit Ethernet (RTSP, GigE Vision) to workstation running included Research Studio Software
Dynamic Range
16-bit
Field of view (FOV)
24° × 18°
Focus
One-shot contrast, motorized, manual
Frame Rate
30 Hz
IR Resolution
320 × 240 pixels
Lens
24°
Lens Identification
Automatic
Macro Mode
Included
Minimum Focus Distance
2.0x Macro: 18 mm (0.71 in) 24°: 0.15 m (0.49 ft) 24° with Macro Mode: 17 mm (0.67 in) 42°: 0.15 m (0.49 ft) 14°: 1.0 m (3.28 ft) 6°: 5.0 m (16.4 ft) DFOV (24°/14°): 0.18 m (0.59 ft) and 1.0 m (3.28 ft)
Optional Lenses
DFOV (24°/14°), 6°, 14°, 42°, 80°
Pixel Pitch
17 µm
Spectral Range
7.5–14.0 µm
Thermal Sensitivity/NETD
Lens dependent: <30 mK to <40 mK
Visible Camera
Optional accessory
Weight [incl lens]
0.82 kg (1.8 lb)
Measurement & Analysis
Accuracy
±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F)
Standard Temperature Range
-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Communication & Data Storage
Command and Control
Gigabit Ethernet (RTSP, GigE Vision)
Digital I/O connector type
M12 Male 12-pin A-coded (shared with ext. power)
Digital Inputs
2× opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25V
Digital Outputs
3× opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)
Ethernet Communication
GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary)
Ethernet Connector Type
M12 8-pin X-coded, female
Ethernet Image Streaming
Yes
Ethernet Power
Power over Ethernet, PoE IEEE 802.3af class 3
WiFi
Optional feature
General
Size [L x W x H ] w Lens
123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Power
External Voltage
18-56 VDC, 8 W max
Power
24/48 V DC 8 W max
Power Cable Configuration
Power over Ethernet or External
Power Connection
M12 Male 12-pin A-coded (shared with Digital I/O)
Environmental & Certifications
Encapsulation
IEC 60529, IP 54, IP66 with accessory
Mounting
UNC ¼″-20 on 2 sides 4× M4 on 4 sides
Operating Temperature
-20°C to 50°C (-4°F to 122°F): • -20°C to 40°C (-4°f to 104°F) (in free air) • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) • Maximum camera case temperature: 65°C (149°F)
Shock
IEC 60068-2-27, 25 g
Storage Temperature Range
IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours
Vibration
IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
